megaspin 610
Digital Balancing Machine with Automatic Spin for Wheels up to 250 kg
The megaspin 610 is a digital balancing machine for truck, bus and heavy-duty wheels up to 250 kg, designed to combine precision, safety and ease of use. The integrated lifting spindle simplifies wheel loading and centring, while the laser line guides accurate weight placement for fast and reliable balancing operations.
Automatic gauge for distance and diameter measurement for rims up to 32” allows an immediate and accurate detection of all necessary wheel parameters to correctly measure wheel imbalance.
The adhesive correction weights are position with great accuracy thanks to the laser line at 6 o’clock position which identifies the application point of the weight and to the electric brake that allows locking the wheel in the correction position.
The innovative spindle shaft that lifts and lowers acts as a lift built in the machine body, helping the operator during wheel loading and unloading. In fact, the wheel is loaded with no effort thanks to the lowest sliding trolley available on the market (59 mm) and is locked when it is still on the ground, ensuring a perfect centring in full safety conditions for the operator.
The unbalance measurement process starts only when the two buttons positioned on the side of the machine are simultaneously pressed; this eliminates the possibility of accidental damage for the operator, who can work safely even in the absence of wheel protection.
Technical data
| Single phase power supply | 230V/1ph/50 hz |
| 115V/1ph/60 Hz | |
| Max. absorbed power | 0,65 kW |
| Balancing speed | 130 rpm (for car) / 80 rpm (for truck) |
| Measuring cycle for car/truck wheel | 8 ÷ 20 s |
| Measurement uncertainty | ± 0.5 g |
| Resolution | 1 g (for car) / 10 g (for truck) |
| Average noise | < 70 dB (A) |
| Rim width setting range | 1.5” ÷ 20” / 40 ÷ 510 mm |
| Rim diameter setting range | 10” ÷ 30” / 265 ÷ 765 mm |
| Min./Max. compressed air pressure | 8 ÷ 12 kg/cm2 / ~ 0.8 ÷ 1.2 MPa |
| ~ 8 ÷ 12 bar / ~ 120 ÷ 165 psi | |
| Max. wheel weight | 250 kg |
| Max. wheel diameter | 1380 mm |
| Machine weight | 190 kg |
Accessories
GLM40 kit
Quick locknut with handwheel GLM40, sleeve and ring.
WDK gauge
WDK gauge
Pincer-hammer
Pincer-hammer and 300 g. counterweight.

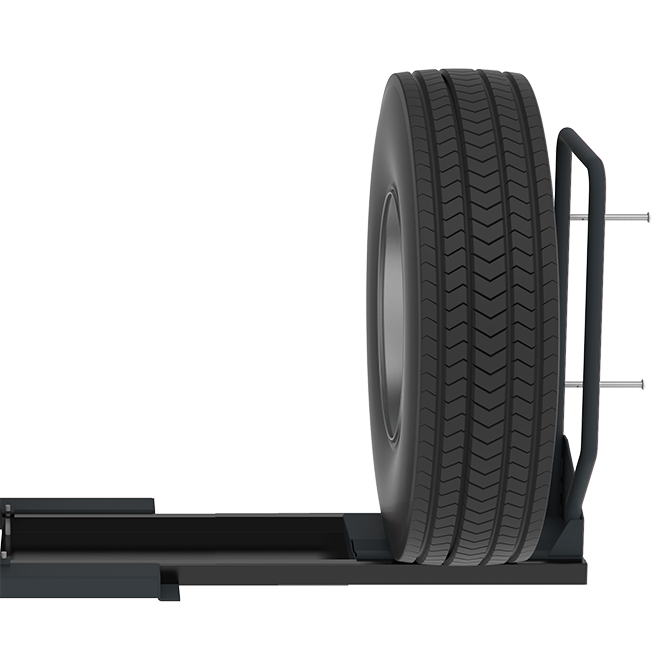

Sliding trolley
Thanks to its height of only 59 mm, it allows for easy loading of the wheel.
IV/V cones-GG-G40 kit
To centre truck or bus wheels with a central hole of 202/221/281 mm Ø. Made up of IV and V cones, G40 disc and GG ring.
SR215/2 kit
To centre wheels with 8 holes on 275/285.75 mm Ø and with 10 holes on 225/285.75/335 mm Ø. Supplied with centring adaptor, 5 and 4 armed spiders, stud bolts and screws.
Car adaptor kit
For wheels with a central hole of 45-194 mm Ø. Consists of 4 cones.
GLM40 kit
Quick locknut with handwheel GLM40, sleeve and ring.
WDK gauge
WDK gauge
Pincer-hammer
Pincer-hammer and 300 g. counterweight.
Sliding trolley
Thanks to its height of only 59 mm, it allows for easy loading of the wheel.
IV/V cones-GG-G40 kit
To centre truck or bus wheels with a central hole of 202/221/281 mm Ø. Made up of IV and V cones, G40 disc and GG ring.
SR215/2 kit
To centre wheels with 8 holes on 275/285.75 mm Ø and with 10 holes on 225/285.75/335 mm Ø. Supplied with centring adaptor, 5 and 4 armed spiders, stud bolts and screws.
Car adaptor kit
For wheels with a central hole of 45-194 mm Ø. Consists of 4 cones.
