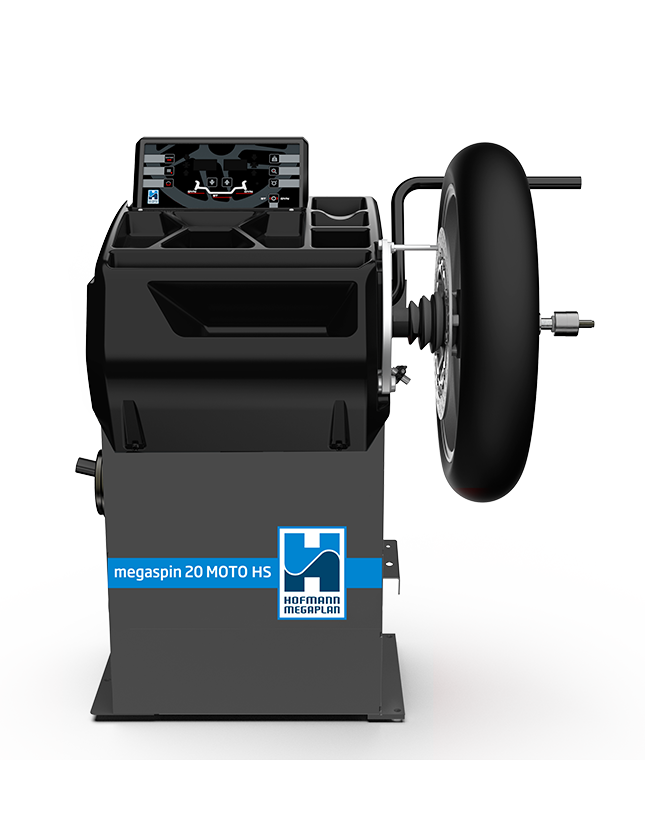

megaspin 20 MOTO HS
The Advanced Solution for Dynamic Balancing of Motorbike Wheels
The megaspin20 MOTO HS is a manual spin wheel balancer specifically designed for motorcycles. Thanks to the innovative fixed spindle shaft system, it reproduces the real rolling conditions of the wheel, ensuring outstanding measurement accuracy and repeatability.
One of the few solutions capable of guaranteeing perfect dynamic balancing, the megaspin20 MOTO HS is particularly effective for wide rear wheels, which are typically more challenging to balance due to their greater width.
Equipped with an automatic gauge, laser line for precise weight positioning and an intuitive digital display, it ensures fast, reliable and professional balancing operations for motorcycle specialists and workshops.
Play
Thanks to the fixed spindle axis, the wheel is free to rotate on its bearings, reproducing exactly the movement of the wheel mounted on the motorbike. By eliminating all the assembly inaccuracies inevitable on car balancers where the flange is rotated together with the wheel, imbalance detection becomes much more precise and accurate.
To enable an extremely fast balancing operation, the machine is equipped with a laser line to assist the operator in positioning the adhesive weights within the rim.
Automatic gauge for measuring the distance and diameter of rims up to 24”, equipped with an innovatively designed tip that prevents interference with the brake discs, ensuring accurate and unobstructed reading.

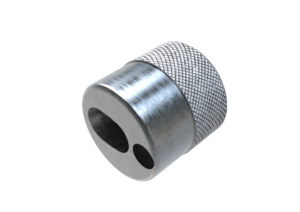

Manual fixing system very easy to use, thanks to the quick-release locknut.

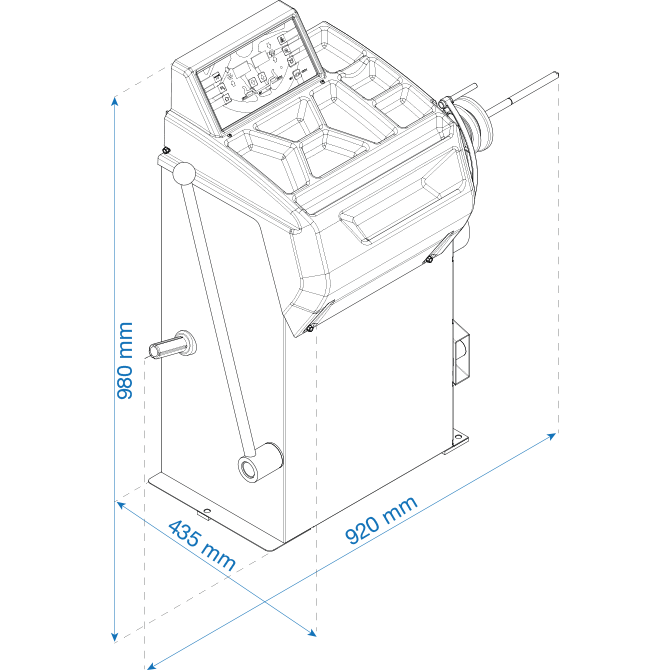

Technical data
| Single phase power supply | 230V/1ph/50-60 hz |
| Max. absorbed power | 0,65 kW |
| Balancing speed | 75 rpm |
| Measurement spin time for 13-15 kg wheel | 6-8 s |
| Measurement uncertainty | ± 1 g |
| Resolution | 1 g |
| Avarage noise | < 70 dB (A) |
| Rim width setting range | 1.5” ÷ 20” / 40 ÷ 510 mm |
| Rim diameter setting range | 10” ÷ 24” / 250 ÷ 610 mm |
| Max. wheel diameter | 800 mm |
| Max. wheel weight | < 30 kg |
| Machine weight | 72 kg |
Accessories

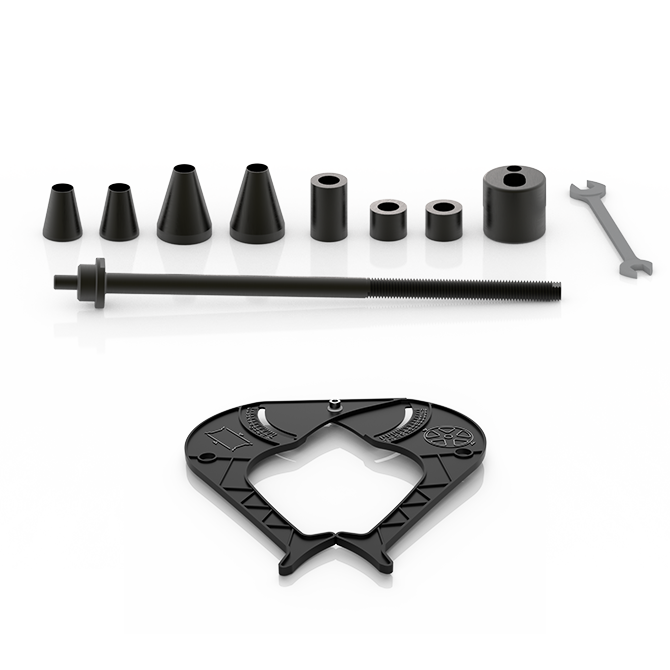

AF15/2
Shaft ø14 mm
2 cones ø15/26 mm
2 cones ø15-36 mm
Spacers:
2 x L=20 mm, 1 x L=40 mm
Washer, 28 mm
Motorbike quick ring nut
Manual Gauge

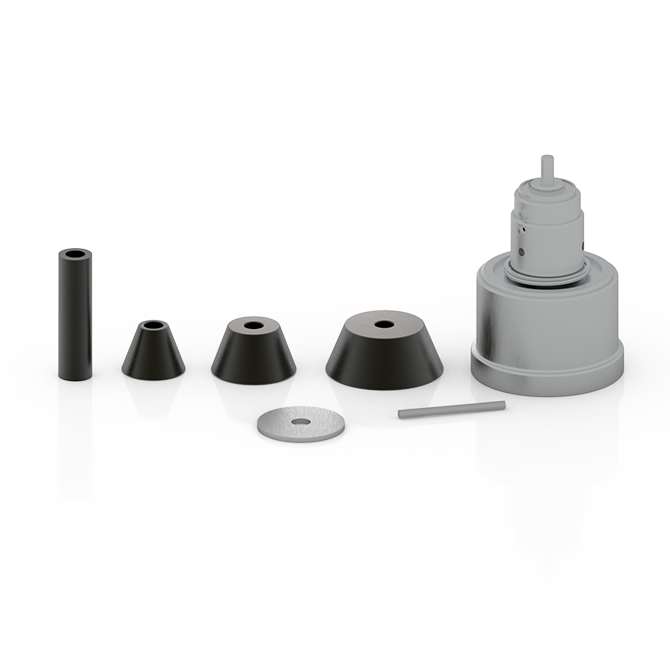

AGF/2
AGF/2 option of AF15/2 for single-arm wheels
3 CONES KIT: ø 24/45 mm; ø40/61 mm; ø60/85 mm, Washer ø64 mm, Spacer 95 mm

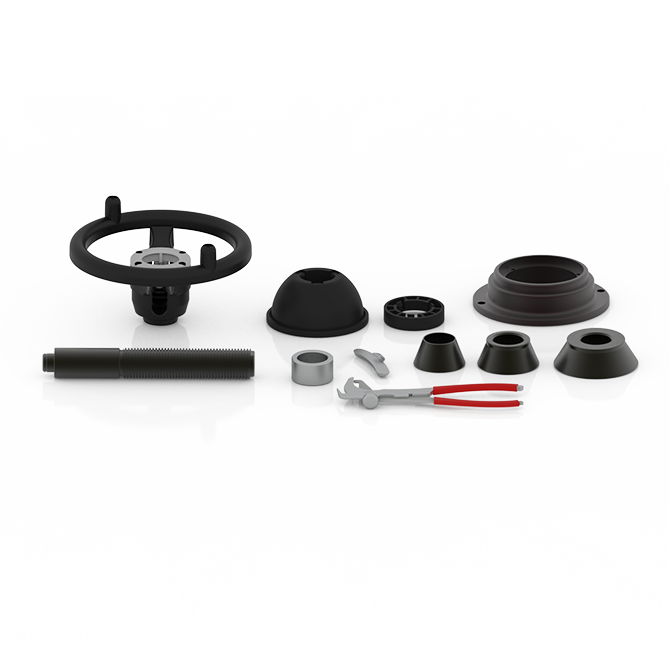

Kit for Quad/SSV wheels
Option of AGF/2
Threaded end ø40×4 mm + fastening screw / AGF ring ø180 mm / DC ring / GLM40 ring nut.
3 cones kit Ø 45÷110 mm, pincer-hammer and 60 g. counterweight
AF15/2
Shaft ø14 mm
2 cones ø15/26 mm
2 cones ø15-36 mm
Spacers:
2 x L=20 mm, 1 x L=40 mm
Washer, 28 mm
Motorbike quick ring nut
Manual Gauge
AGF/2
AGF/2 option of AF15/2 for single-arm wheels
3 CONES KIT: ø 24/45 mm; ø40/61 mm; ø60/85 mm, Washer ø64 mm, Spacer 95 mm
Kit for Quad/SSV wheels
Option of AGF/2
Threaded end ø40×4 mm + fastening screw / AGF ring ø180 mm / DC ring / GLM40 ring nut.
3 cones kit Ø 45÷110 mm, pincer-hammer and 60 g. counterweight

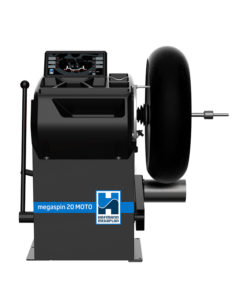

megaspin 20 MOTO
