megaline 2500

3D Wheel Alignment System with High Efficiency and Space-Saving Structure

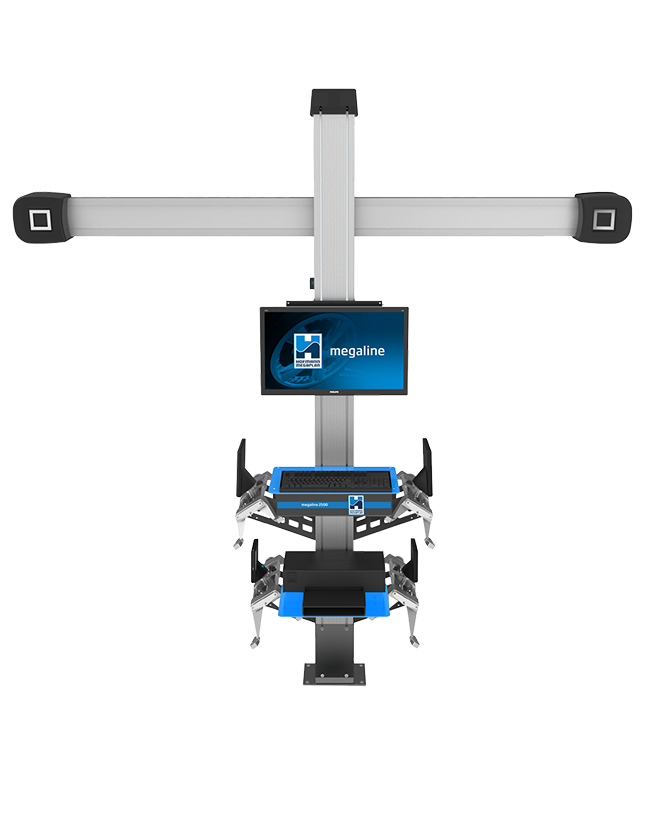

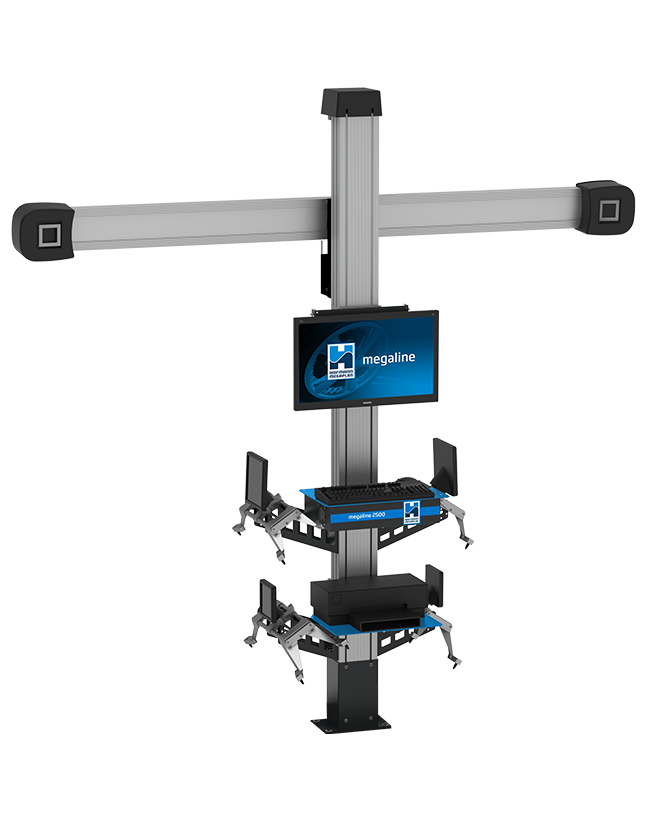

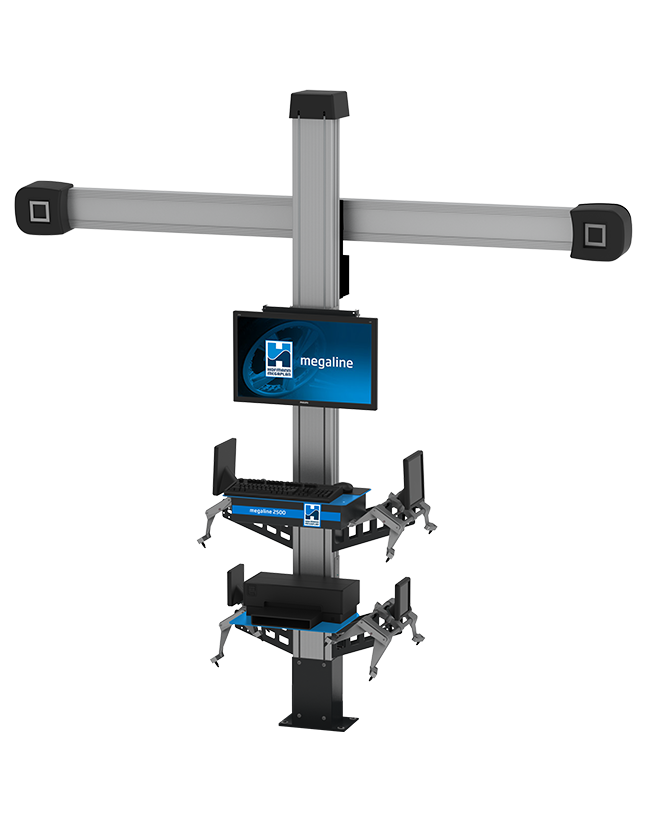

The megaline 2500 is a 3D wheel alignment system for cars and light commercial vehicles, designed to deliver accurate and reliable measurements with high efficiency and a space-saving structure, ideal for small-sized workshops. Thanks to advanced 3D technology, the system precisely measures toe, camber and maximum steering angle, with real-time adjustment of detected values. It also allows single wheel lifted run-out measurement in workshops with restricted space or lifts with steps. The lightweight HD targets, without electronics or batteries, ensure easy handling and reliability. The integrated diagnostic software compares measured values with manufacturer specifications, highlighting out-of-tolerance parameters and helping identify possible driving disorders. The database includes more than 55,000 vehicle models and is automatically updated via internet connection.

The 3D technology detects all alignment parameters of cars and light commercial vehicles, measuring with extreme precision the vehicle’s toe, camber, and maximum steering angle, with the possibility of real-time adjustment of the detected values. In addition, the system allows the measurement of single wheel lifted run-out in case of restricted space or lifts with steps.

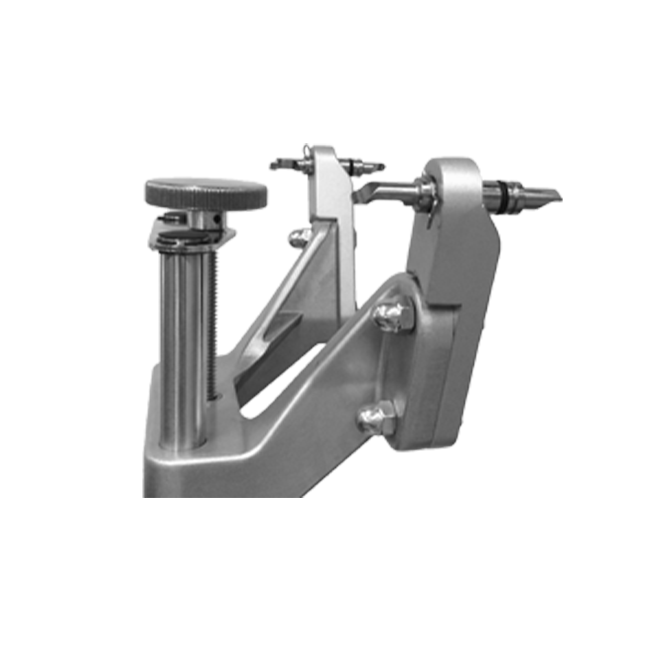

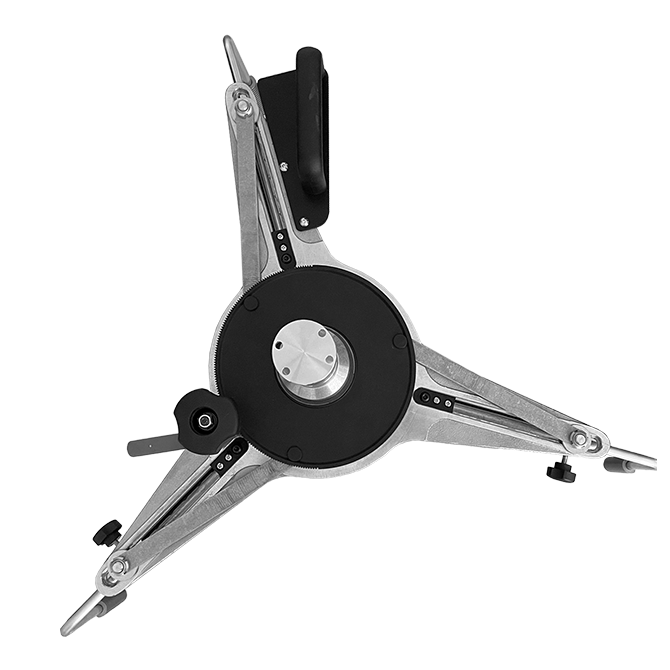

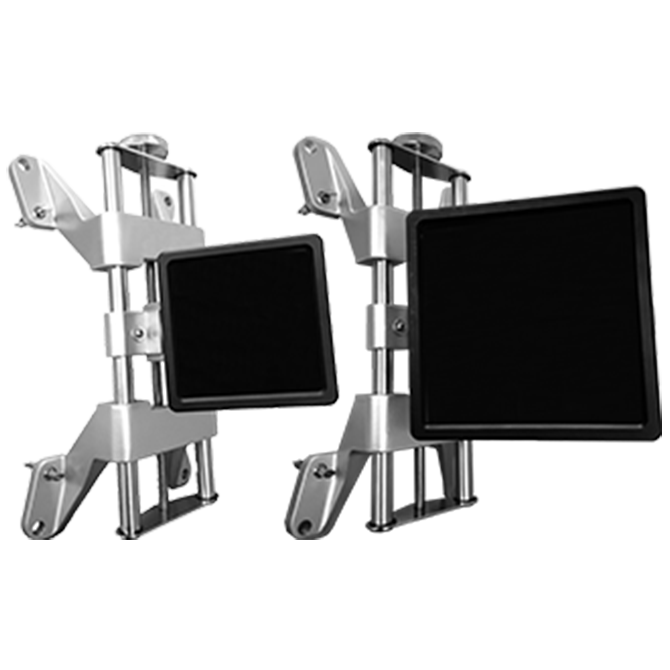

Targets are extremely compact and light, as they are without electronics and batteries. In the standard version, the targets are mounted on 4-point clamps for wheels from 12” to 24” (up to 27” if fitted with special optional extensions). The system allows measurement with 2 targets in the case of long vehicles.

The database, updated every four months, contains more than 55,000 models with related specifications. Software and database updates automatically take place via internet connection.

The diagnosis page shows the measurements made on the vehicle alongside the specifications provided by the database, highlighting in red the measurements that are outside the specification limits and which will need to be adjusted. The Audit function provides a diagnosis of possible driving disorders resulting from measurements outside specification limits.
