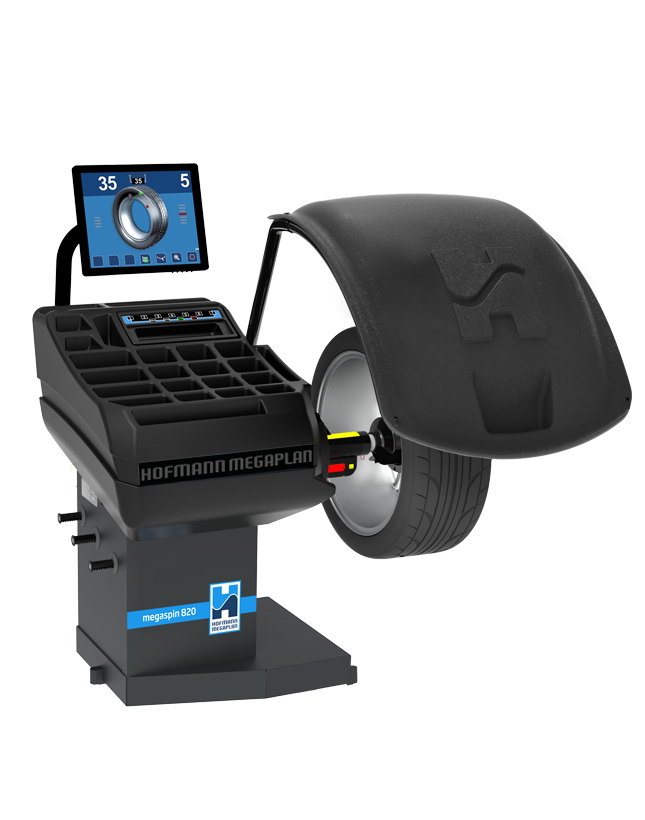

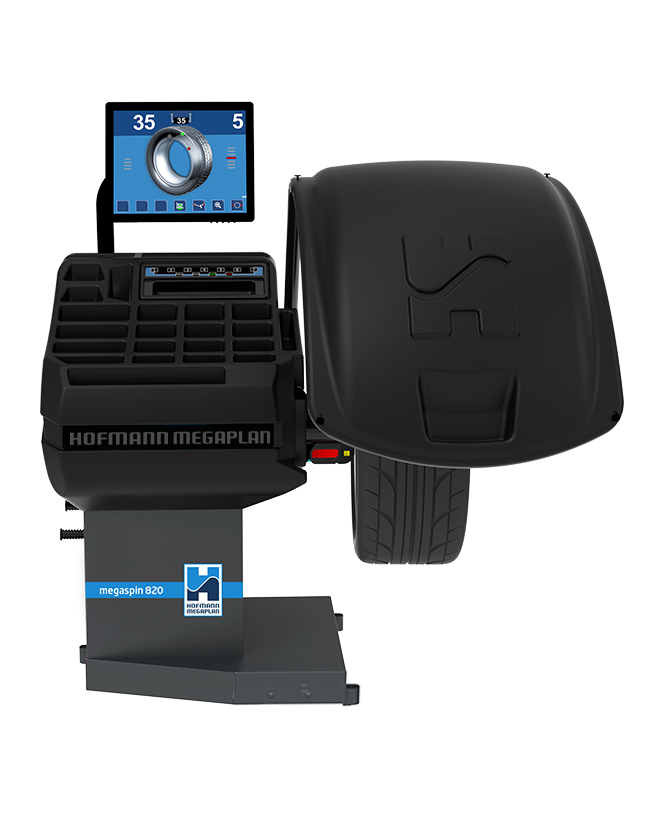

megaspin 820

Automatic gauge for distance and diameter measurement for rims up to 28” allows an immediate and accurate detection of all necessary wheel parameters to correctly measure wheel imbalance.

Auto Sense device for automatic wheel width measurement.

During the correction phase, the laser pointer indicates the exact position for the application of adhesive counterweights inside the rim. Any possible error during the weight positioning is avoided thanks, also, to the electric brake, which locks the wheel into the exact correction position. A led light illuminates the working space inside the rim.

One Weight Balancing function is automatically activated, at the end of the spin, and suggests a single ideal correction plane instead of two. The laser pointer indicates the exact point where it is possible to balance the wheel minimizing both static and dynamic imbalance, using only one counterweight. OWB offers 30% time savings for 70% of wheels.

With the automatic approach system and the electric brake, once the measuring spin is completed, the wheel automatically stops near the exact point of application of the counterweight. The operator can position the wheel correctly with just a little movement. After the first plane is corrected, pressing start the wheel position itself around the second correction point.

Easy manual locking system with quick locknut.

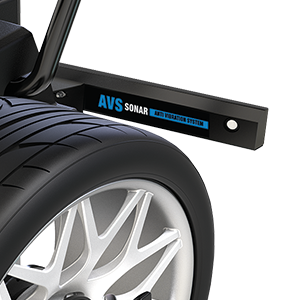

OPTIONAL - Since the vibrations of a wheel often not depend only on the imbalance, the Anti Vibration System (AVS) makes a more in-depth analysis of the run-out. The AVS Sonar, during the normal balancing cycle, detects wheel eccentricity with a 0,1 mm accuracy, providing an accurate result in just a few seconds.

OPTIONAL - HubMatch, the guided on-car eccentricity cancellation process, detects the highestpoint of the wheel to reduce the assembly eccentricity using hub bore clearance and gravity.
