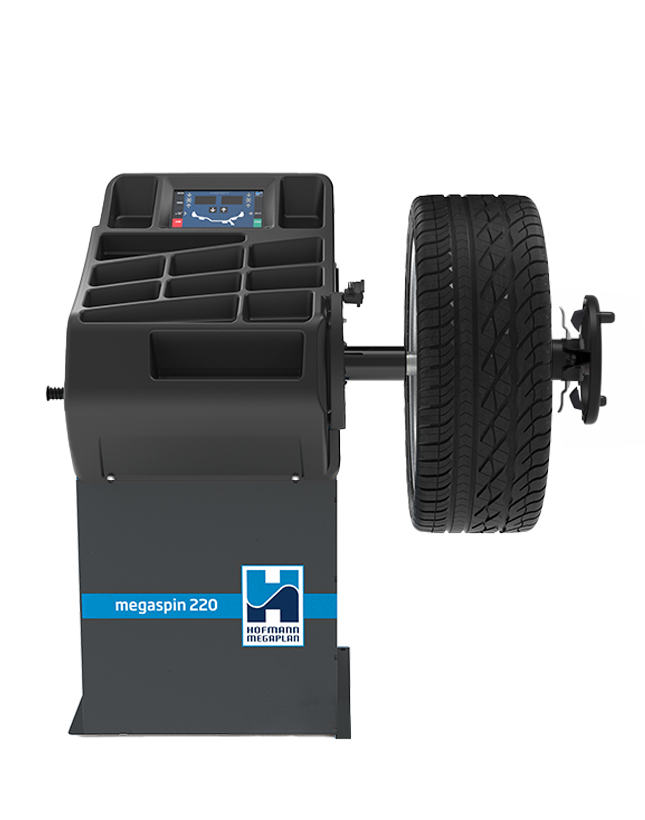

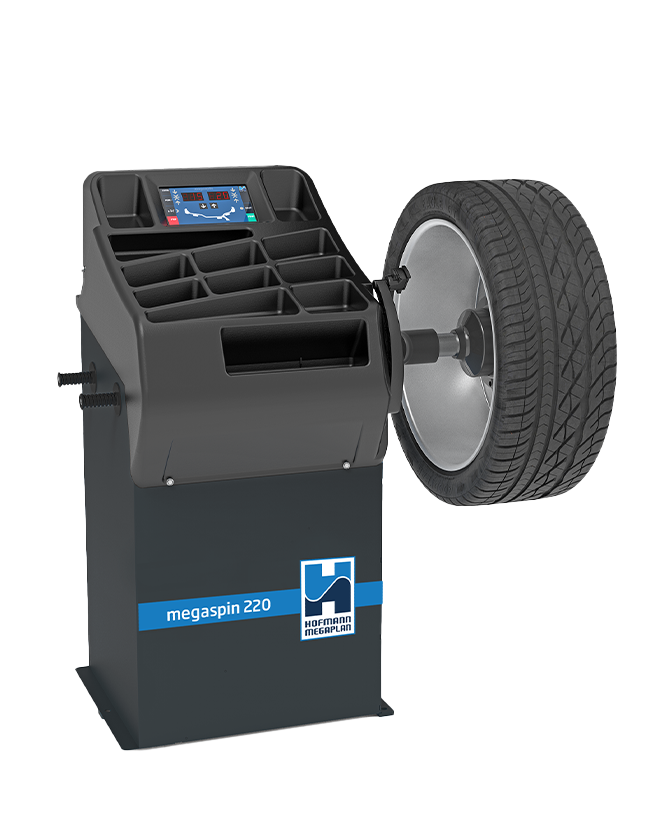

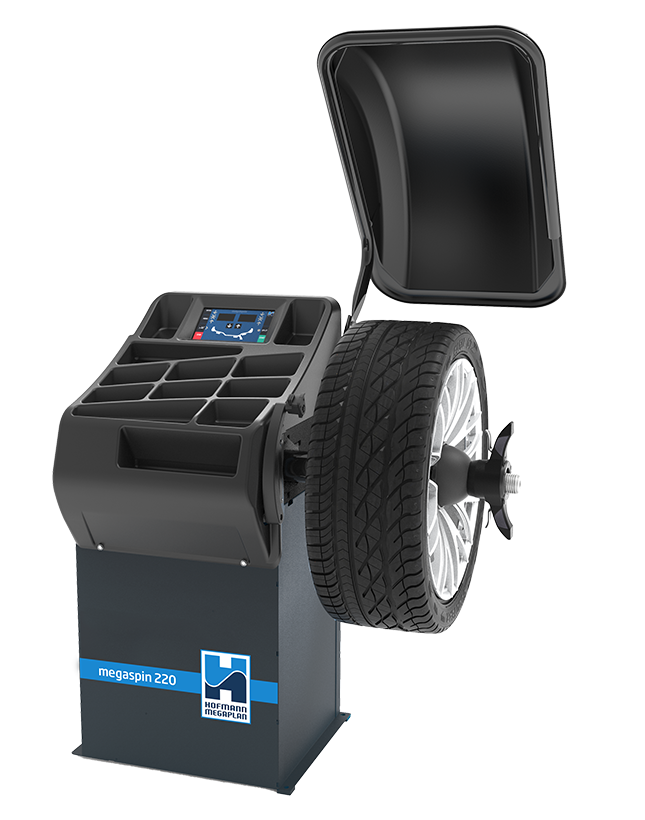

megaspin 220
Compact digital wheel balancer
The Megaspin 220 is the compact digital wheel balancer designed to meet the needs of tire professionals. It features an automatic gauge that detects wheel dimensions up to 30″, and Virtual Sonar software for efficient steel rim measurements. The digital display is simple and durable and allows intuitive use of all machine functions. The software of the M220 has been developed to provide several programs for the tyre professional: SPLIT, OPT, ALU.
Automatic gauge for distance and diameter measurement for rims up to 28” allows an immediate and accurate detection of all necessary wheel parameters to correctly measure wheel imbalance.
Virtual Sonar is a software able, in the absence of an actual sonar device, to automatically measure the width of steel rims and, therefore, to calculate the position of the second correction plane. Virtual Sonar reduces balancing time by avoiding operator errors caused by manual data entries and guarantees, at the same time, a balancing efficiency.
Easy manual locking system with quick locknut.

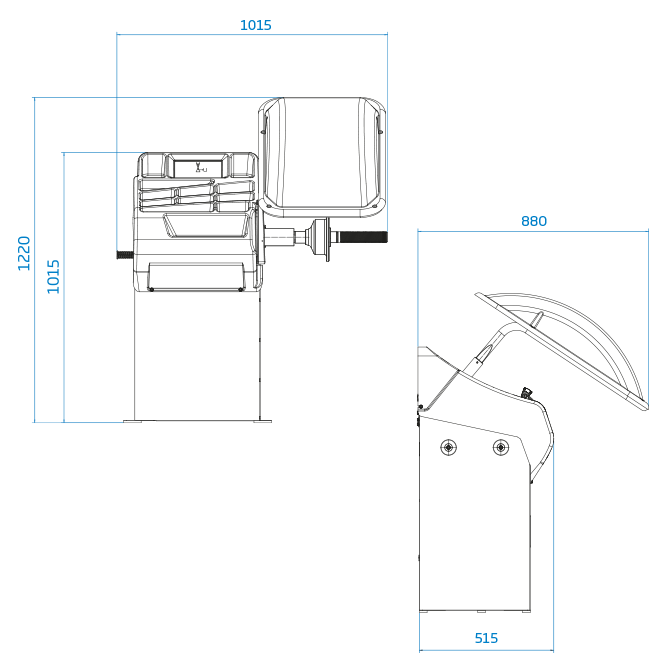

Technical data
| Single phase power supply | 230V/1ph/50Hz |
| 115V/1ph/60Hz | |
| Max. absorbed power | 0,65 kW |
| Balancing speed | 100 rpm |
| Measurement spin time for 15 kg (33 lb) wheel | 4,7 s |
| Measurement uncertainty | ± 0.5 g |
| Resolution | 0,5 g |
| Avarage noise | < 70 dB (A) |
| Rim width setting range | 1.5” ÷ 20” / 40 ÷ 510 mm |
| Rim diameter setting range | 10” ÷ 30” / 265 ÷ 765 mm |
| Min./Max. compressed air pressure | 7 ÷ 10 kg/cm2 / ~ 0.7 ÷ 1 MPa |
| ~ 7 ÷ 10 bar / ~ 105 ÷ 145 psi | |
| Max. wheel weight | < 75 kg |
| Machine weight | 110 kg |
Accessories
GLM40 kit for M220 without wheel guard
Quick locknut with handwheel GLM40, sleeve and ring.

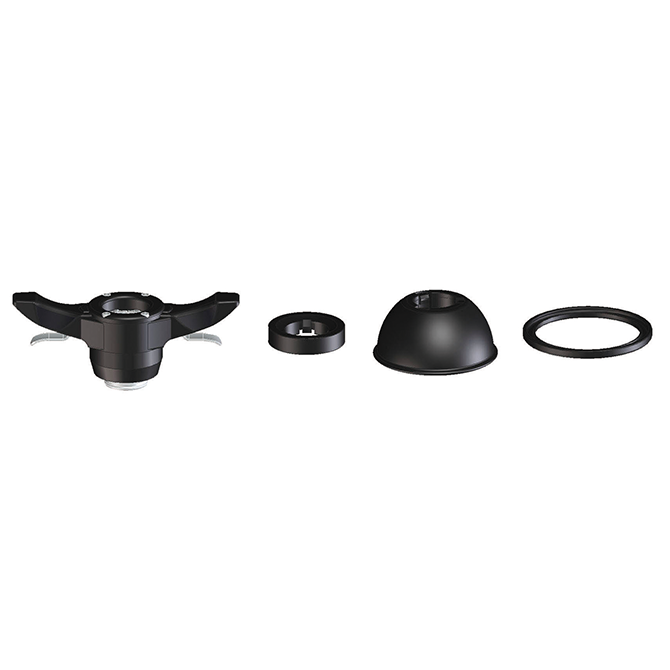

GL40 kit for M220 with wheel guard
Quick locknut GL40 with sleeve and ring.
3 cones kit
Ø 45÷110 mm, pincer-hammer and 60g counterweight.

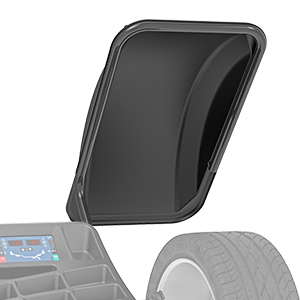

Wheel guard
34” wheel guard.
Zero weight lift
Professional automatic wheel lift with load capacity up to 80 kg. Zero weight lift is quick and ensure the exact centring of the wheel. Complete with integrated electronic PLC and pneumatic system.
Easy weight lift
Professional automatic wheel lift with load capacity up to 80 kg. Zero weight is quick and ensure the exact centring of the wheel. Lift up/down movement is mechanical, by compressed air.
4 cones kit
Set of 4 cones Ø 45÷110 mm, counterweight 60 g and pincers hammer.
Kit VL/2+GG+G40
Kit composed of VL/2 cone, GG and G40 discs. Recommended for Ford pick-up and other 4-wheel drive vehicles (97-180mm).
Mercedes kit
Set of 3 cones ( Ø 57/66,5 /84/85 mm) + spring. According to Mercedes Benz specs.
MT2 cone Ø 40
Stepped cone for German cars Porsche, Audi, Opel, Volkswagen, BMW, Smart (Ø 56,5 / 57 / 66,5 / 72,5 mm centre hole).
SRU 345
Universal stud adapter for all 3, 4, 5 and 6 hole rims. Infinitely adjustable bolt circle from 75 to 210 mm. Supplied with short and long clip-on studs, for different rim types.
PSA Kit
High precision set of 3 brushes (Ø 58/60/65 mm) + 2 cones (Ø 62÷68 mm and Ø 54÷60 mm). According on Peugeot and Citroën specs.
Renault kit
Set of 5 brushes Ø 60/66/71/88/129,9. According to Renault specs.
UH20/2 Ø 40
Universal adapter for wheels with 3, 4, 5, 6 holes (Ø 95-120 mm pitch circle). Complete with high precision back centering double cone for wheels with/without central holes (Renault, Peugeot and Citroën).
