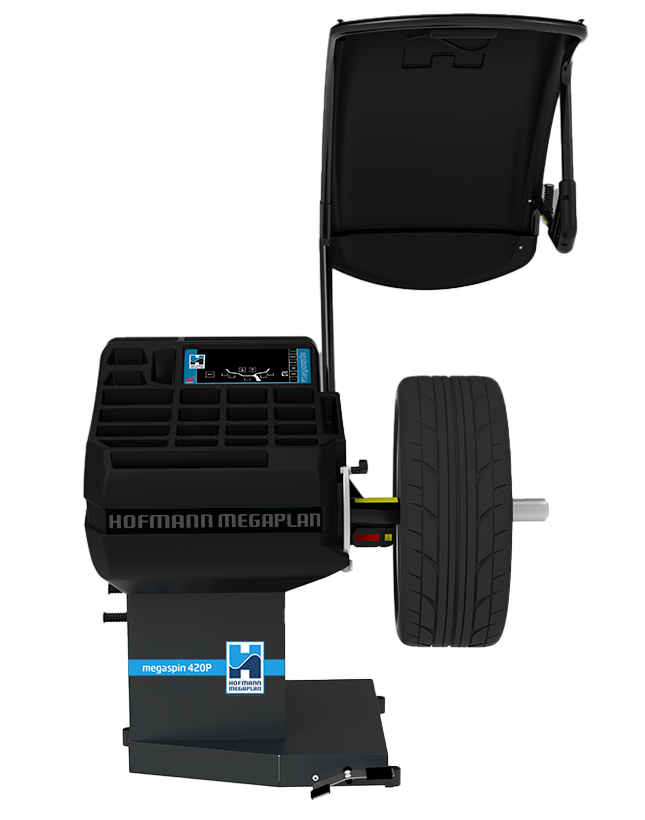

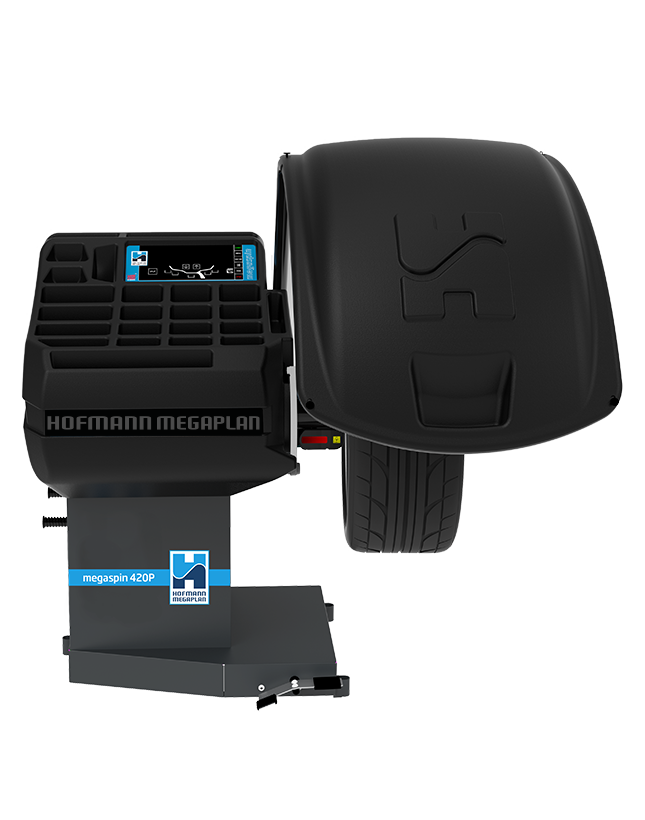

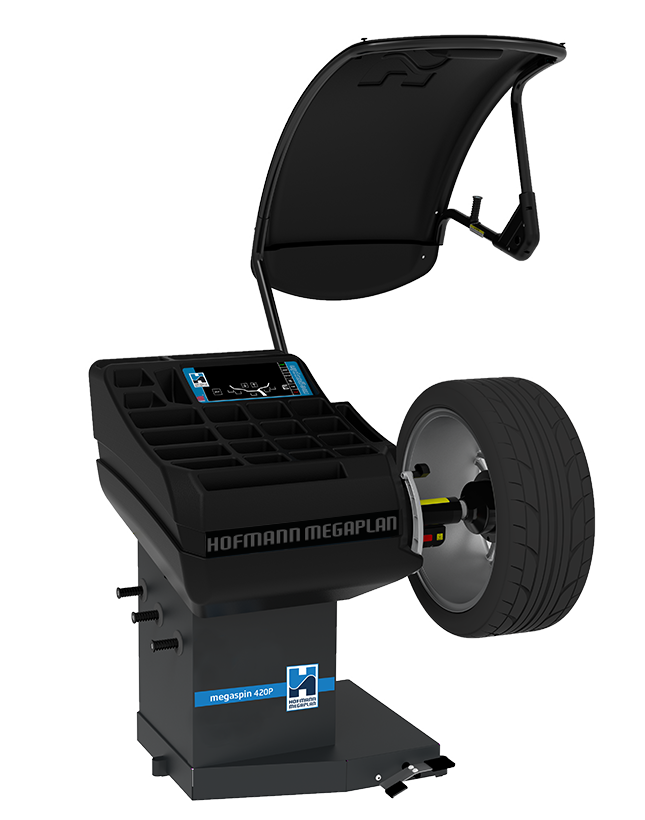

megaspin 420P
High precision digital wheel balancer
Megaspin 420P is a high-precision wheel balancer that automatically detects wheel dimensions using an automatic gauge for distance and diameter, and the Auto Sense sonar for wheel width. The laser pointer ensures precise weight placement, while the LED light improves visibility. The One Weight Balancing feature speeds up the process by reducing corrections to a single plane.
Automatic gauge for distance and diameter measurement for rims up to 28” allows an immediate and accurate detection of all necessary wheel parameters to correctly measure wheel imbalance.
Auto Sense device for automatic wheel width measurement.
During the correction phase, the laser pointer indicates the exact position for the application of adhesive counterweights inside the rim. Any possible error during the weight positioning is avoided thanks, also, to the electric brake, which locks the wheel into the exact correction position. A led light illuminates the working space inside the rim.
One Weight Balancing function is automatically activated, at the end of the spin, and suggests a single ideal correction plane instead of two. The laser pointer indicates the exact point where it is possible to balance the wheel minimizing both static and dynamic imbalance, using only one counterweight. OWB offers 30% time savings for 70% of wheels.
With the automatic approach system and the electric brake, once the measuring spin is completed, the wheel automatically stops near the exact point of application of the counterweight. The operator can position the wheel correctly with just a little movement. After the first plane is corrected, pressing start the wheel position itself around the second correction point.
Pneumatic locking ensures perfect wheel centering on the spindle, reducing clamping time.

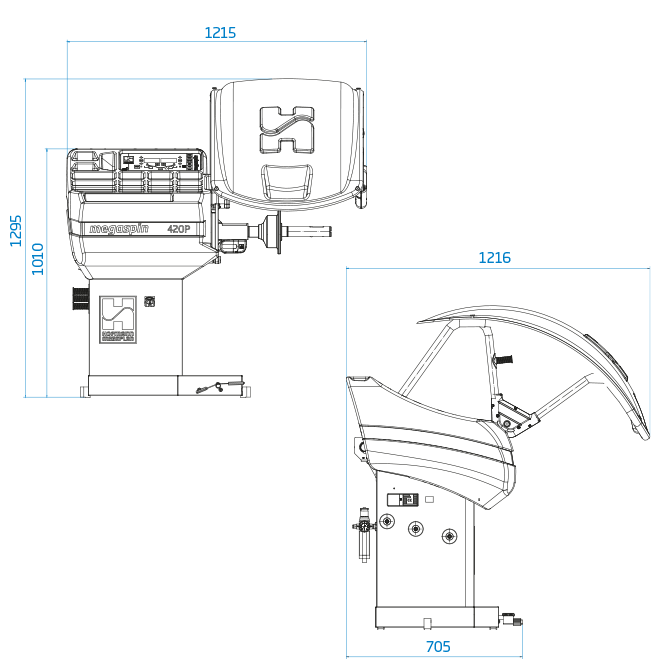

Technical data
| Single phase power supply | 230V/1ph/50Hz |
| 115V/1ph/60Hz | |
| Max. absorbed power | 0,65 kW |
| Balancing speed | 100 rpm |
| Measurement spin time for 15 kg (33 lb) wheel | 4,7 s |
| Measurement uncertainty | ± 0.5 g |
| Resolution | 0,5 g |
| Avarage noise | < 70 dB (A) |
| Rim width setting range | 1.5” ÷ 20” / 40 ÷ 510 mm |
| Rim diameter setting range | 10” ÷ 30” / 265 ÷ 765 mm |
| Min./Max. compressed air pressure | 7 ÷ 10 kg/cm2 / ~ 0.7 ÷ 1 MPa |
| ~ 7 ÷ 10 bar / ~ 105 ÷ 145 psi | |
| Max. wheel weight | < 75 kg |
| Machine weight | 120 kg |
Accessories
SE kit
Ring, quick locking sleeve SE2, SE spacer.
3 cones kit
Ø 45÷110 mm, pincer-hammer and 60g counterweight.

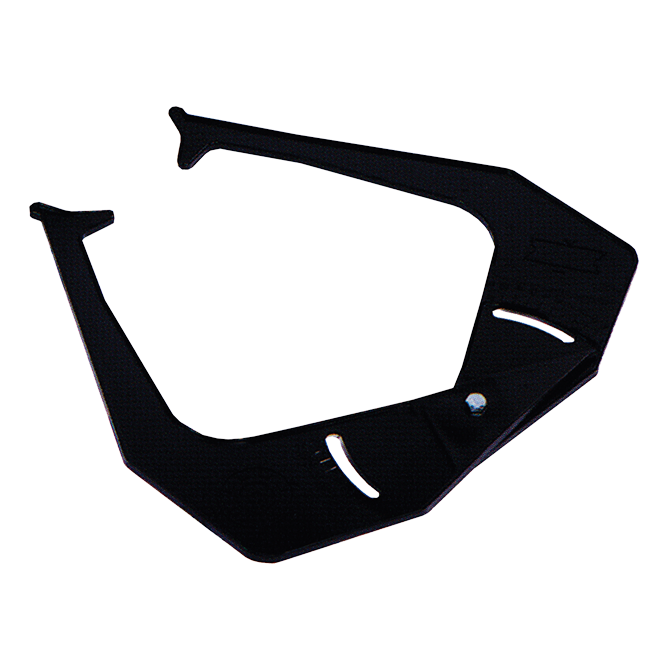

Width gauge
Width gauge.
Zero weight lift
Professional automatic wheel lift with load capacity up to 80 kg. Zero weight lift is quick and ensure the exact centring of the wheel. Complete with integrated electronic PLC and pneumatic system.
Easy weight lift
Professional automatic wheel lift with load capacity up to 80 kg. Zero weight is quick and ensure the exact centring of the wheel. Lift up/down movement is mechanical, by compressed air.
4 cones kit
Set of 4 cones Ø 45÷110 mm, counterweight 60 g and pincers hammer.
Kit VL/2+GG+G40
Kit composed of VL/2 cone, GG and G40 discs. Recommended for Ford pick-up and other 4-wheel drive vehicles (97-180mm).
Mercedes kit
Set of 3 cones ( Ø 57/66,5 /84/85 mm) + spring. According to Mercedes Benz specs.
MT2 cone Ø 40
Stepped cone for German cars Porsche, Audi, Opel, Volkswagen, BMW, Smart (Ø 56,5 / 57 / 66,5 / 72,5 mm centre hole).
PSA Kit
High precision set of 3 brushes (Ø 58/60/65 mm) + 2 cones (Ø 62÷68 mm and Ø 54÷60 mm). According on Peugeot and Citroën specs.
Renault kit
Set of 5 brushes Ø 60/66/71/88/129,9. According to Renault specs.
SRU 345/SE
Universal stud adapter for all 3, 4, 5 and 6 hole rims. Infinitely adjustable bolt circle from 75 to 210 mm. Supplied with short and long clip-on studs, for different rim types.
UH20/2 Ø 40
Universal adapter for wheels with 3, 4, 5, 6 holes (Ø 95-120 mm pitch circle). Complete with high precision back centering double cone for wheels with/without central holes (Renault, Peugeot and Citroën).
RL cap Ø 40
Large plastic cap with polyurethane ring for alloy rims protection.
