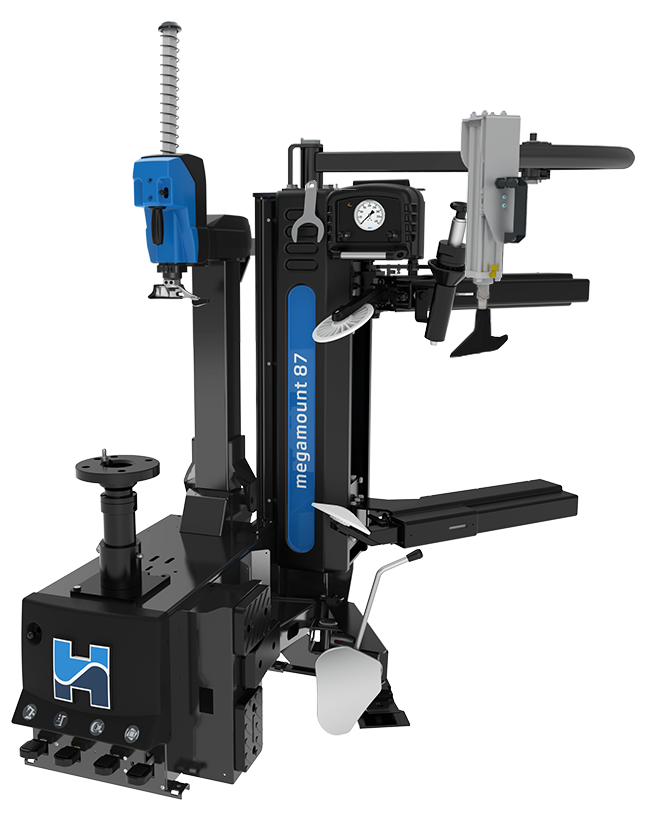

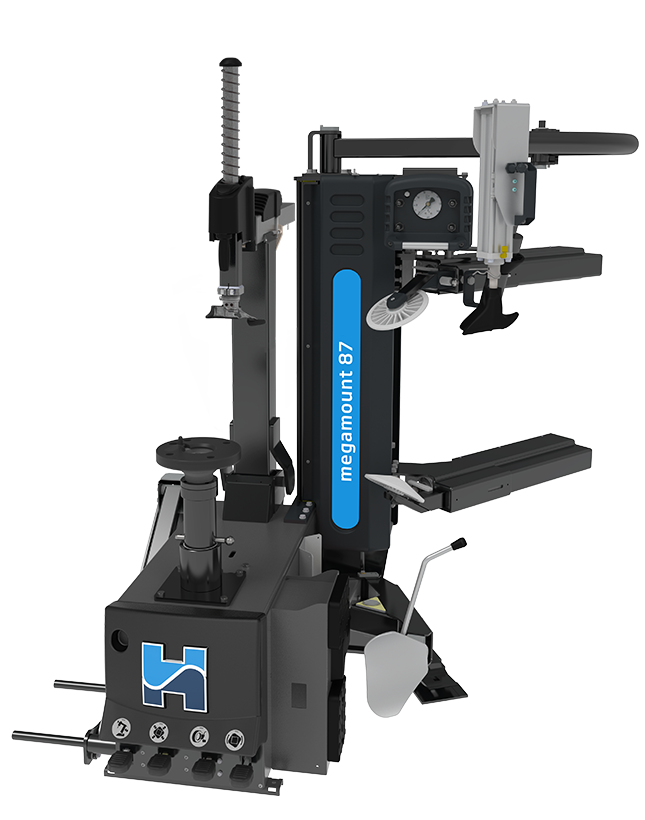

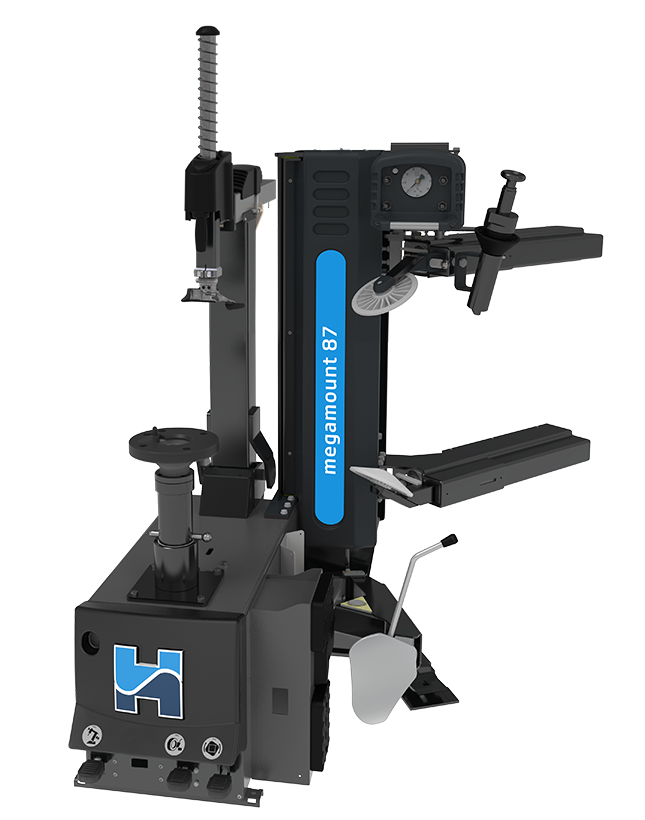

megamount 87
Automatic Tyre Changer with Locking Capacity up to 30" and Motoinverter
The megamount 87 is an advanced automatic tyre changer designed for handling wheels up to 30″ in diameter. It features a Motoinverter system for precise speed control, a robust clamping mechanism with a backer pad system, and a pedal-operated inflating device. Its dual bead removal system, including dynamic discs and an ergonomic bead tool, allows for efficient work on various wheel types, from standard to UHP and Run-flat. Enhanced stability and reduced bending are achieved through a reinforced vertical pole and horizontal arm.
A height-adjustable backer pad system offers a wide clamping capacity from 10" to 30" and ensures optimal clamping on all types of rims, reducing the risk of damaging them. The rubber support plane also allows reverse rims to be clamped directly on the plate.
Dynamic discs activated by comfortable controls to manage their up/down, forward/backward and combined movements, to work on low profile, RFT and UHP wheels.
Ergonomic bead breaker with adjustable arm system which enables to operate on large wheels up to 17” width.
Motor controlled by Motoinverter system with progressive variation of speed from 0 to 16 rpm. The inverter board is installed on the machine, away from the engine to overcome vibration and heat problems. Low power consumption at rest with the intelligent stand-by. High reliability and protection, with automatic alarm reset bringing the pedal to the resting position (no power outages required).
Pedal-operated inflating system, manometer and CE-certified inflation pressure limiter.
Technical data
| Clamping capacity | 10” ÷ 30” (min ÷ max) |
| Max wheel diameter | 1160 mm (46”) |
| Max wheel width | 430 mm (17”) |
| Bead breaker force | 1200+1200 kgf (with discs) |
| 2800 kgf (with blade) | |
| 1-Phase motor | 1.5 kW (Inverter) 230V 50-60Hz |
| Turntable speed | 0 -16 rpm (1ph - Inverter) |
| Operating pressure | 8 - 12 bar (116 - 145 psi) |
| Noise level | < 70 ± 3 dB (A) |
| Net weigth | 410 kg |
Accessories

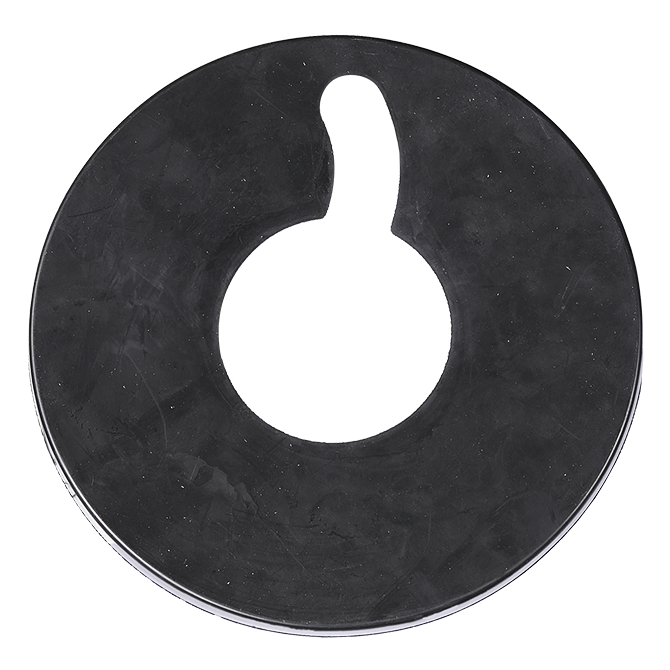

Self centering device protection
Rubber protection for self centering device.
Front head protections
Front head protections (x2).
Rear head protections
Rear head protections (x2).

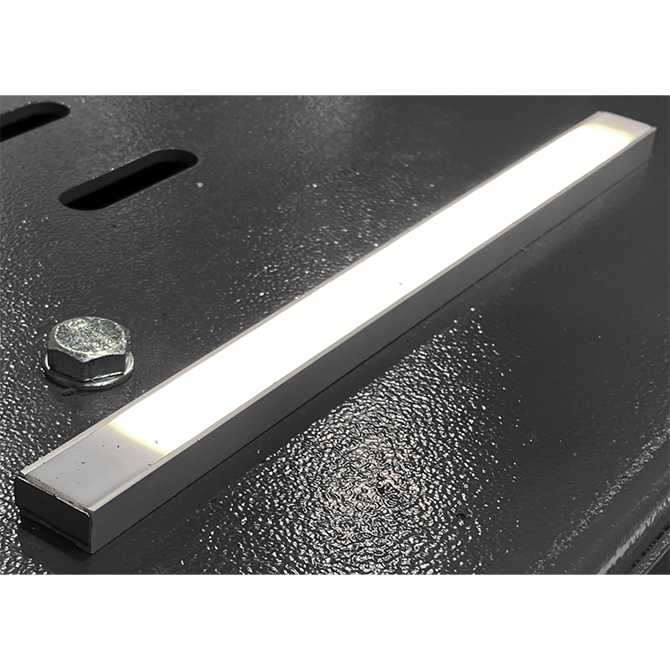

Led light
Led power supply kit.
Wheel lift
Wheel lift with working capacity up to 75 kg.
External inflating kit
External inflating kit for tubeless tires including air tank to be fixed on the machine.

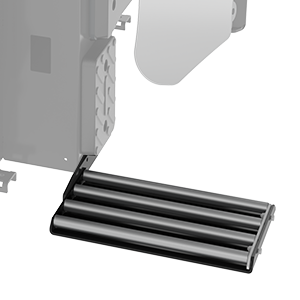

Roller board
Roller board to ease the bead breaking operations.
Bead-pusher
Bead-presser with pulling system.

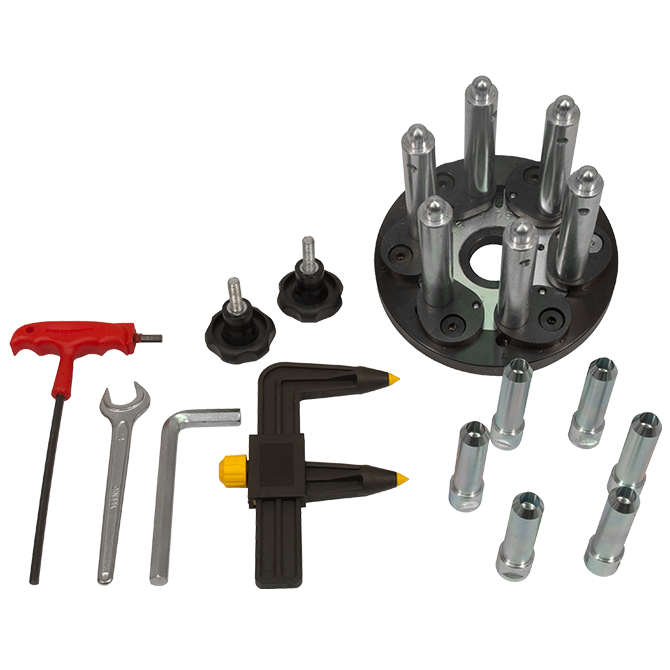

Flange for reverse rims
Reverse rim flange kit.
Tool-holder
Lateral tool-holder.

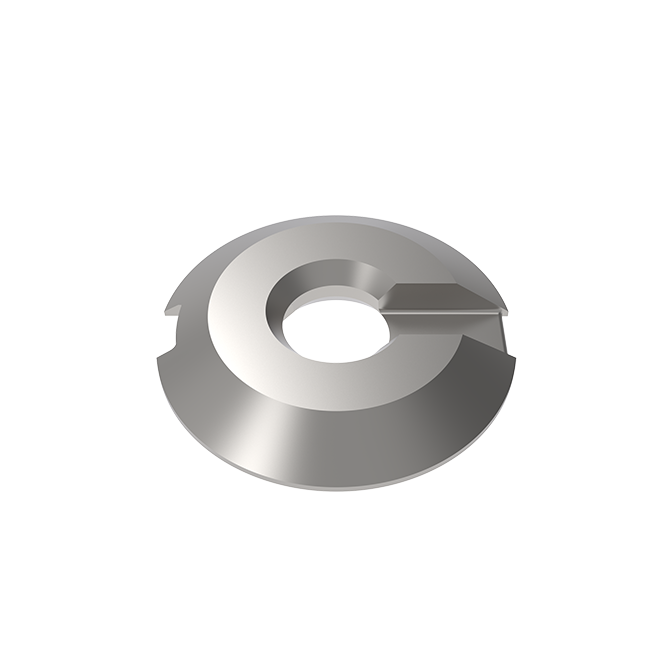

Light truck cone
Cone for light truck wheels (Ø 122 mm – 174 mm).

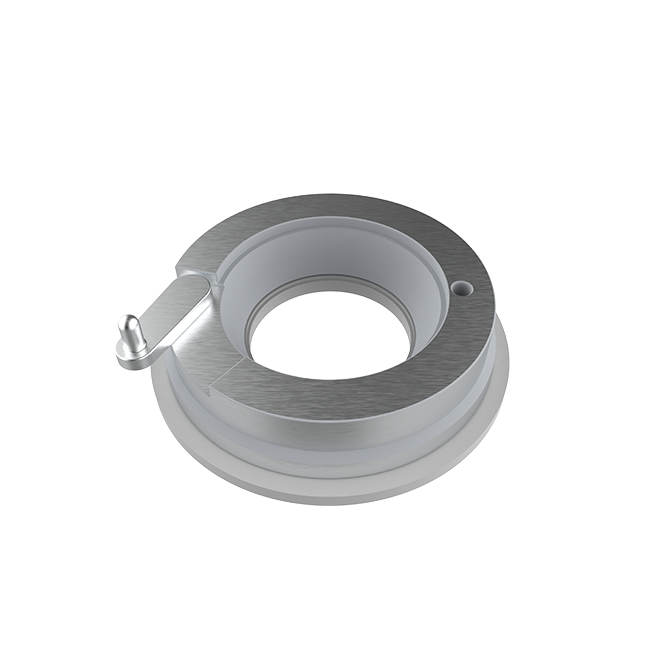

Light truck spacer
Spacer for light truck wheels.
Mount/demount adaptor for light truck
Mount/demount adaptor for light truck or wheels with protruding spokes.

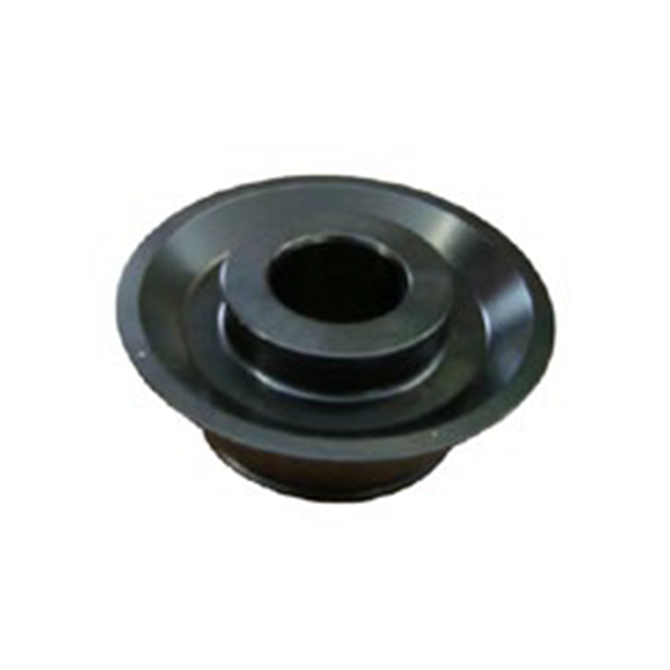

Cone 89/132 Ø 40
Special cone for central hole (Ø 89 – 132,5 mm).
Tyreshop 4.0 kit
Kit composed by PLC with 4,3″ touch screen and Tyreshop 4.0 software. Connection via LAN or Wi-Fi.

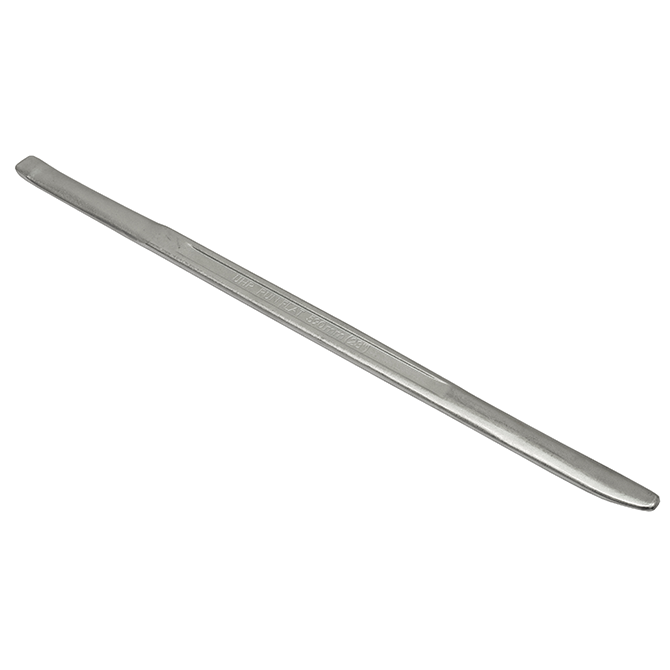

Lever for run-flat tires
Lever for run-flat tires.
Chromed curved lever
WDK chromed curved lever for run-flat tires.
Nickelled curved lever
WDK nickelled curved lever for run-flat tires.
WDK kit
WDK kit includes lever, manual, rim protection and mounting clamp RFT.

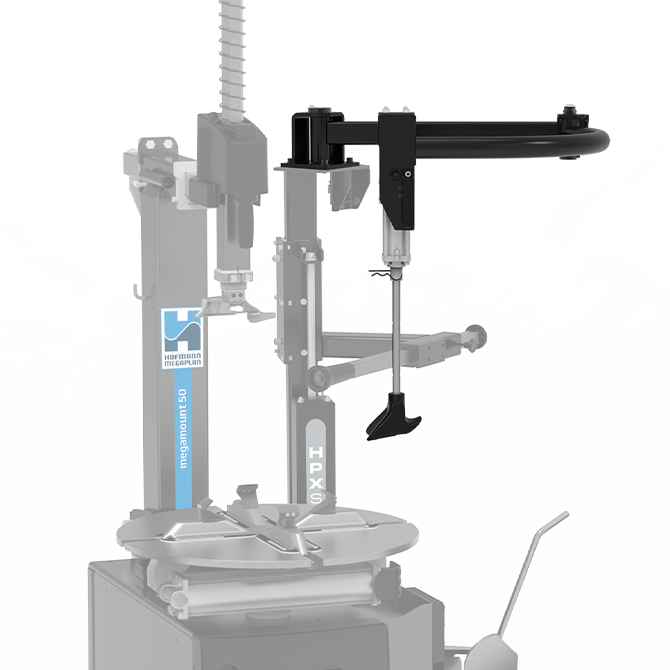

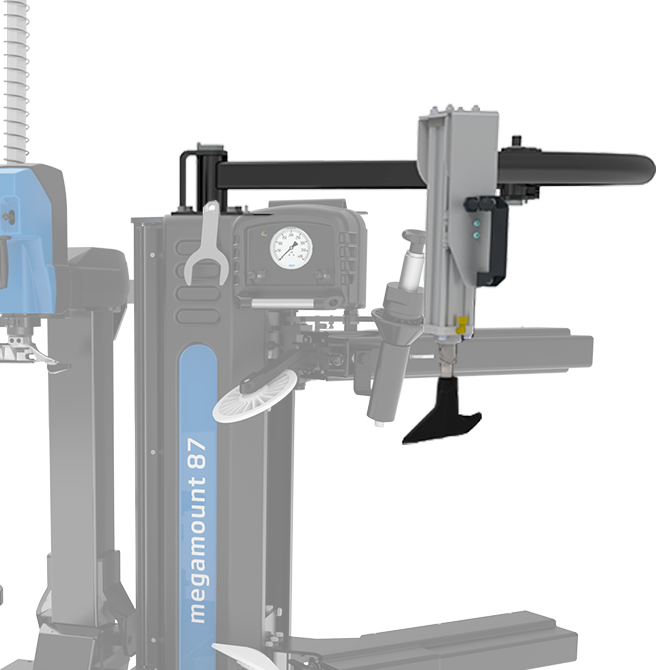

HPX-FA
Additional bead-pressing device.
