megamount 50FWS

Automatic Tyre Changer with Locking Capacity up to 27" and HPS-WS Helper Arm

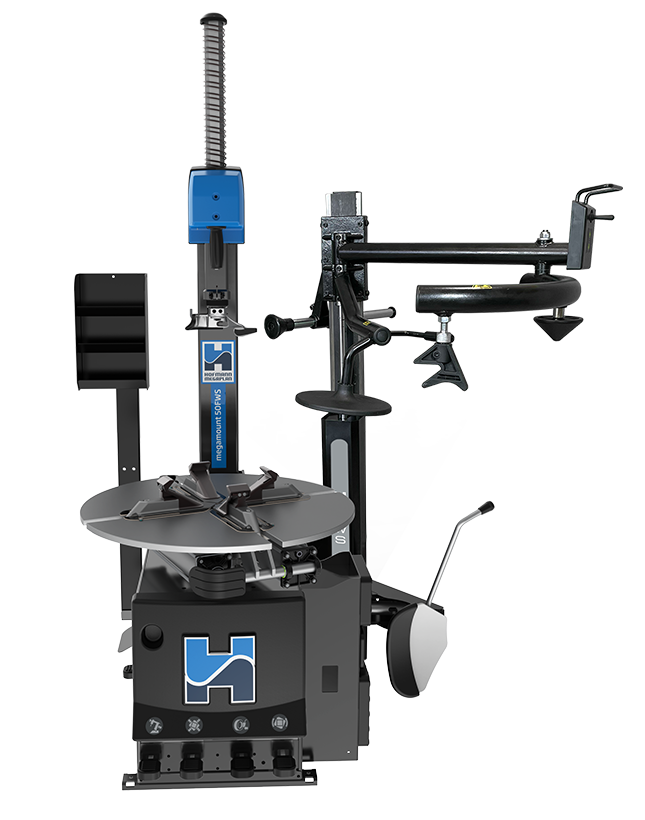

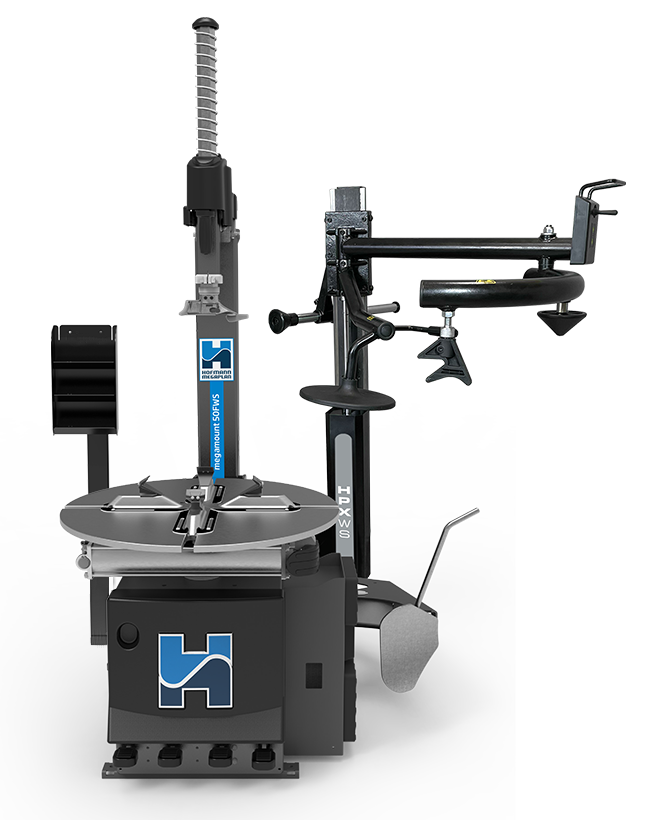

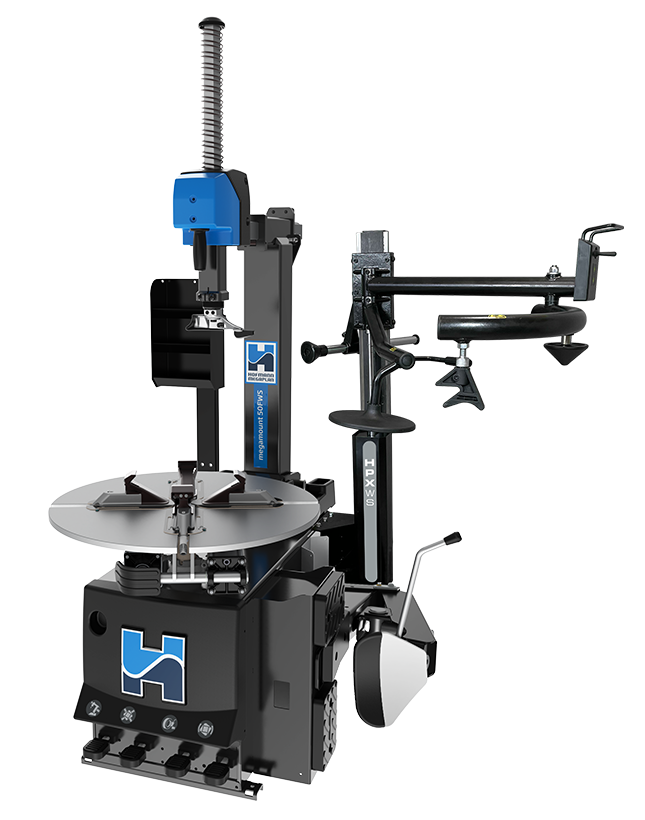

The MM50FWS is a high-performance automatic tyre changer from Hofmann Megaplan, designed and manufactured in Italy. It combines durability, ergonomic design, and advanced features for professional use. It features a robust 14mm turntable with a locking capacity from 10” to 27”, using a direct clamping system operated by 80mm diameter cylinders, ensuring strong and stable clamping on various rim types. The motor supports dual-speed rotation in both directions, controlled by a foot pedal, allowing for precise and efficient operation. The bead breaker is designed with an adjustable arm system, making it easy to handle wheels up to 15” wide, providing optimal performance for larger tyres. The inflation system includes an inflating gun, ensuring controlled and accurate pressure adjustments up to 10 bar.

The HPX-WS assist system is standard, enhancing functionality and ease of use.

Play

The heavy-duty (14mm) turntable has a locking capacity from 10” to 27” and utilises a direct clamping system, operated by 80 mm diameter cylinders, ensuring optimal clamping on all types of rim. The shape of the turnplate is designed so as to ease the bead-breaking of the second bead.

Ergonomic bead breaker with adjustable arm system which enables to operate on large wheels up to 15” width.

Motor with dual rotation clockwise and counterclockwise and double speed controlled by pedal.

Professional tire pressure gun with manometer. For a tire pressure up to max 10 bar.

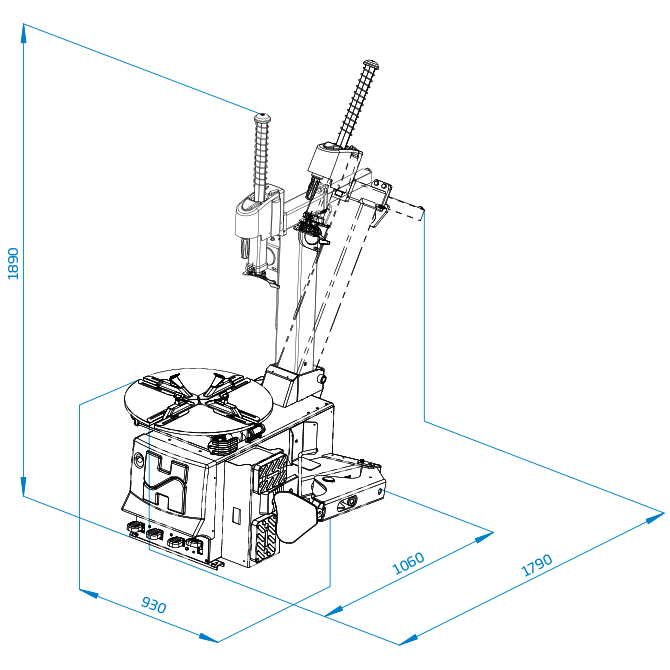

Technical data

Clamping capacity	10” ÷ 27” (min ÷ max)
Internal clamping	12” - 27”
External clamping	10” - 24”
Max wheel diameter	1170 mm (46”)
Max wheel width	360 mm (15”)
Bead breaker force	15000 N
3-Phase motor	0,75 kW 400V 50-60Hz (2 speed)
Turntable speed	8 -16 rpm (3ph - 2 speed)
Operating pressure	8 - 10 bar (116 - 145 psi)
Noise level	< 70 ± 3 dB (A)
Net weigth	260 kg
