megamount 50

Automatic Tyre Changer with Locking Capacity up to 27"

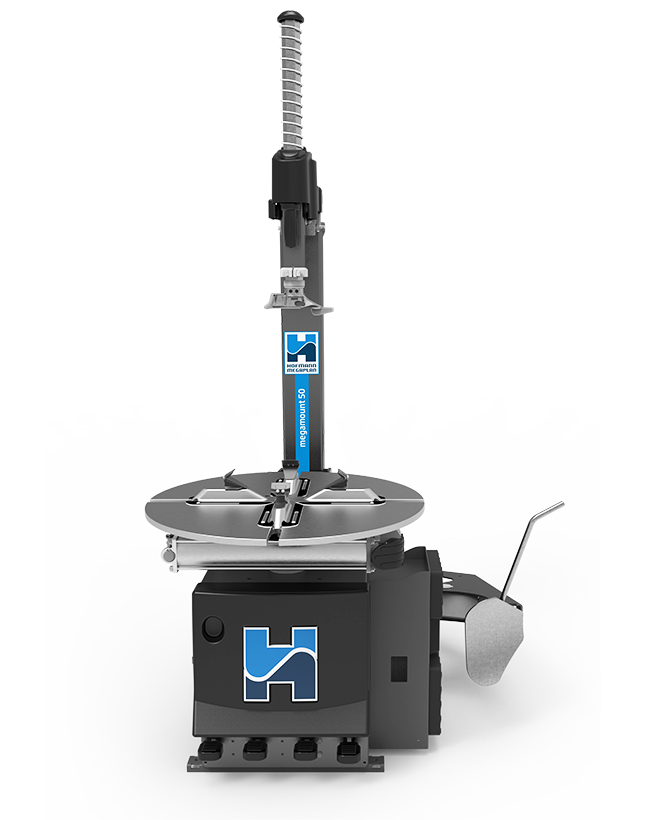

The MM50 is a high-performance automatic tyre changer from Hofmann Megaplan, designed and manufactured in Italy. It combines durability, ergonomic design, and advanced features for professional use. It features a robust 14mm turntable with a locking capacity from 10” to 27”, using a direct clamping system operated by 80mm diameter cylinders, ensuring strong and stable clamping on various rim types. The motor supports dual-speed rotation in both directions, controlled by a foot pedal, allowing for precise and efficient operation. The bead breaker is designed with an adjustable arm system, making it easy to handle wheels up to 15” wide, providing optimal performance for larger tyres. The inflation system includes an inflating gun, ensuring controlled and accurate pressure adjustments up to 10 bar.

Play

The heavy-duty (14mm) turntable has a locking capacity from 10” to 27” and utilises a direct clamping system, operated by 80 mm diameter cylinders, ensuring optimal clamping on all types of rim. The shape of the turnplate is designed so as to ease the bead-breaking of the second bead.

Ergonomic bead breaker with adjustable arm system which enables to operate on large wheels up to 15” width.

Motor with dual rotation clockwise and counterclockwise and double speed controlled by pedal.

Professional tire pressure gun with manometer. For a tire pressure up to max 10 bar.

Technical data

Clamping capacity	10” ÷ 27” (min ÷ max)
Internal clamping	12” - 27”
External clamping	10” - 24”
Max wheel diameter	1170 mm (46”)
Max wheel width	360 mm (15”)
Bead breaker force	15000 N
3-Phase motor	0,75 kW 400V 50-60Hz (2 speed)
Turntable speed	8 -16 rpm (3ph - 2 speed)
Operating pressure	8 - 10 bar (116 - 145 psi)
Noise level	< 70 ± 3 dB (A)
Net weigth	260 kg

Accessories

Bead lever

Bead lever.

Front head protections

Front head protections (x2).

Rear head protections

Rear head protections (x2).

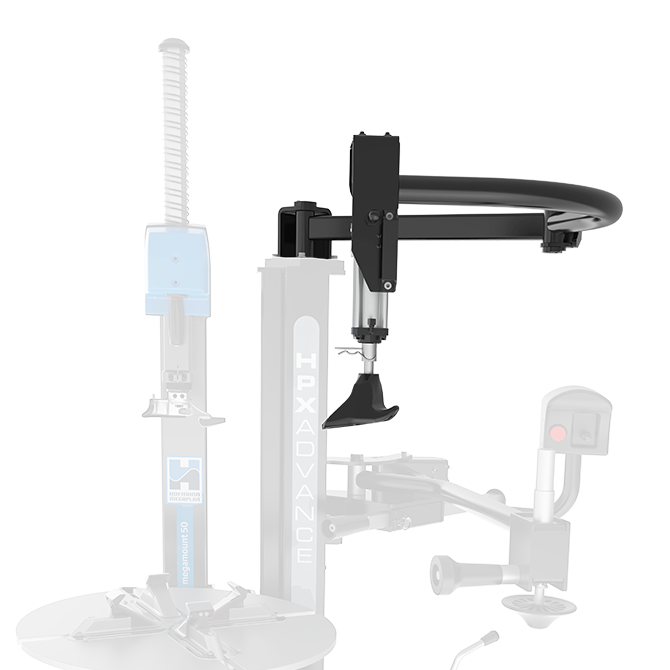

HPX-ADVANCE

Lateral presser equipped with rim pressing arm, second bead pressing roller at 90° with pneumatic locking.

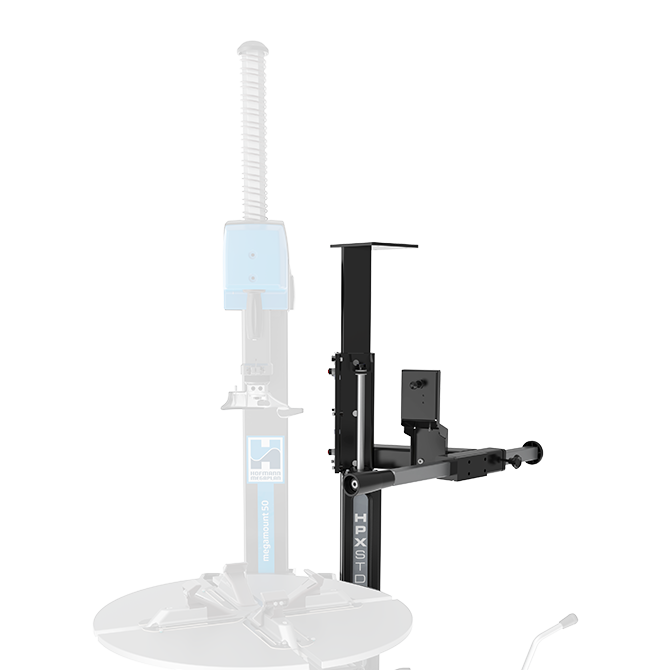

HPX-STD

Compact additional side presser.

HPX-WS

Lateral presser equipped with rim pressing cone, bead pressing arm, rotating bead pressing arm and bead lifting disc.

HPX-FA

Additional bead-pressing device.

HELPER ARM

Additional bead-pressing device.

Wheel lift

Wheel lift with working capacity up to 75 kg.

Roller board

Roller board to ease the bead breaking operations.

External inflating kit

External inflating kit for tubeless tires including air tank to be fixed on the machine.

Bead-pusher

Bead-presser with pulling system.

Handle controls

Bead breaker controls by handle instead of pedal.

WDK kit

WDK kit includes lever, manual, rim protection and mounting clamp RFT.

Blade protection

Bead breaker blade plastic protection.

Lever protection

Plastic lever protection.

Rim protector

Plastic rim protector.

Slide guard kit

4 jaws ALU protection kit.

Jaws for motorcycle

Jaws for motorcycle wheels 14” ÷ 24”.

Jaws for scooter

Jaws for scooter wheels 8″-14″.

Tool-holder

Lateral tool-holder.

Tyreshop 4.0 kit

Kit composed by PLC with 4,3″ touch screen and Tyreshop 4.0 software. Connection via LAN or Wi-Fi.
