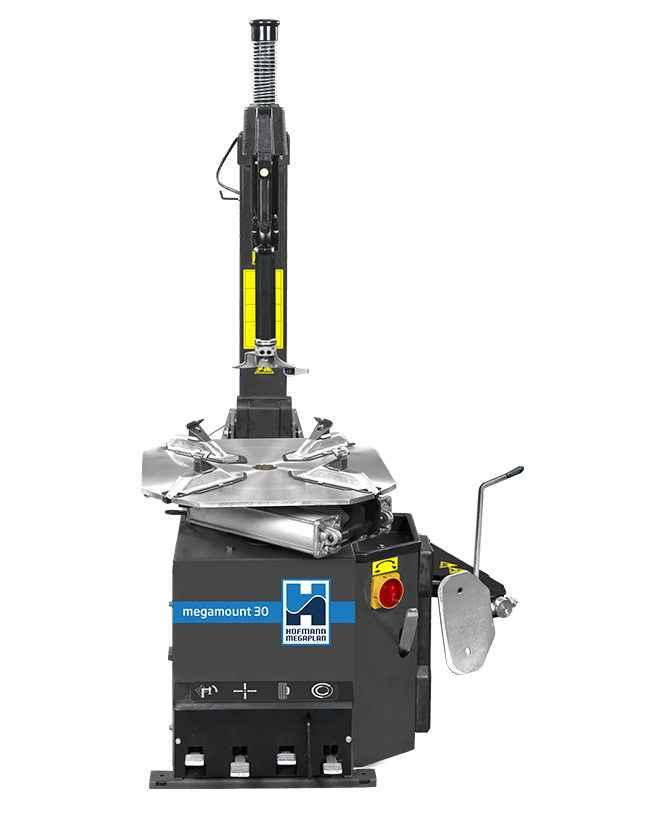

megamount 30
Automatic Tyre Changer with Locking Capacity up to 24"
The MM30FWS is an automatic tyre changer designed for efficiency and versatility. It features a vertical pole with rear tilting and simultaneous locking of the vertical rod and horizontal arm, ensuring stability and ease of use. Its self-centring turntable can handle wheels from 10” to 24”, making it suitable for a wide range of rims. The bead breaker system supports wheels up to 13” in width, providing ergonomic operation. Additionally, it includes a double-speed motor for enhanced control and efficiency. Designed for user convenience, it also features a standard inflation pressure limiter in compliance with CE standards, and is already prepared for connection of the gun. The removable pedal unit further simplifies maintenance.
The sturdy square-shaped self-centring turntable has a clamping capacity from 10” to 24” and is characterized by the opposing jaw clamping system with 80 mm diameter cylinders that adapt to all types of rims. The shape of the turnplate is designed so as to ease the bead-breaking of the second bead.
Ergonomic bead breaker system which enables to operate on large wheels up to 13” width.
Motor with dual rotation clockwise and counterclockwise and double speed controlled by pedal.

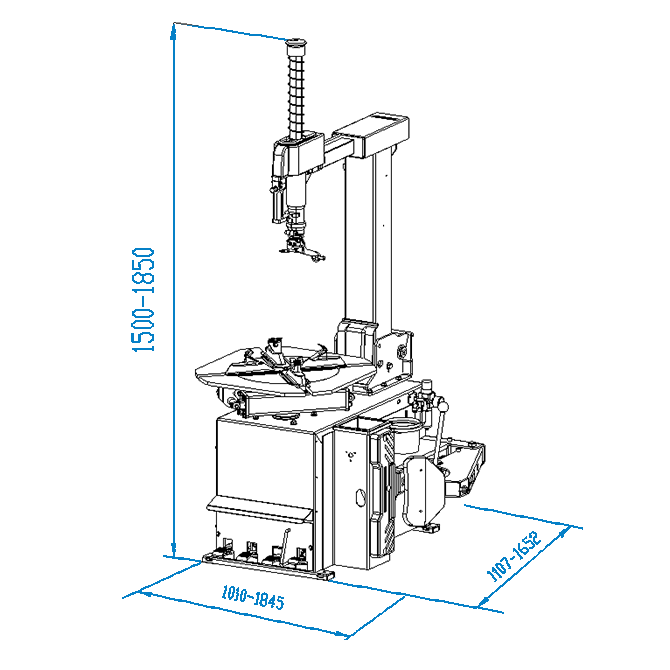

Technical data
| Clamping capacity | 10” ÷ 24” (min ÷ max) |
| Internal clamping | 12” - 24” |
| External clamping | 10” - 22” |
| Max wheel diameter | 1000 mm (39”) |
| Max wheel width | 330 mm (13”) |
| Bead breaker force | 3000 Kgf |
| 3-Phase motor | 0,8 - 1,1 kW 400V 50-60Hz (2 speed) |
| Turntable speed | 7 -14 rpm (3ph - 2 speed) |
| Operating pressure | 10 bar (145 psi) |
| Noise level | < 70 ± 3 dB (A) |
| Net weigth | 230 kg |
Accessories
Bead lever
Bead lever.

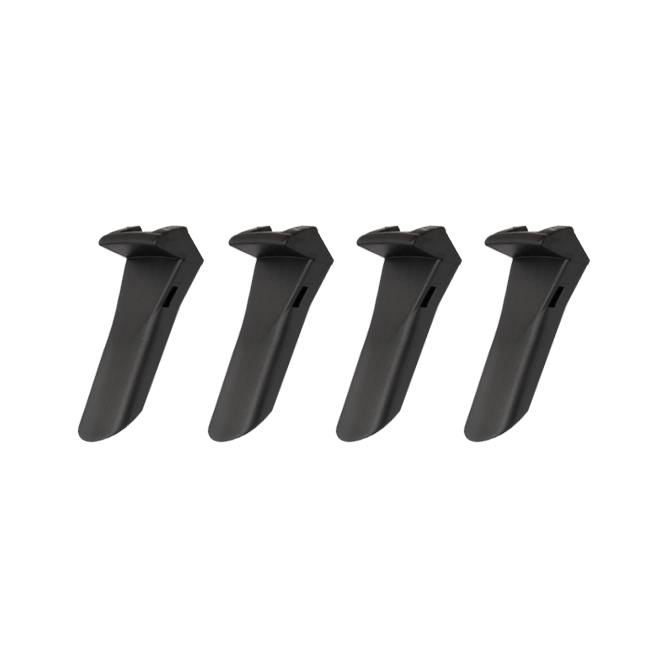

Jaws protection kit
4 jaws ALU protection kit.

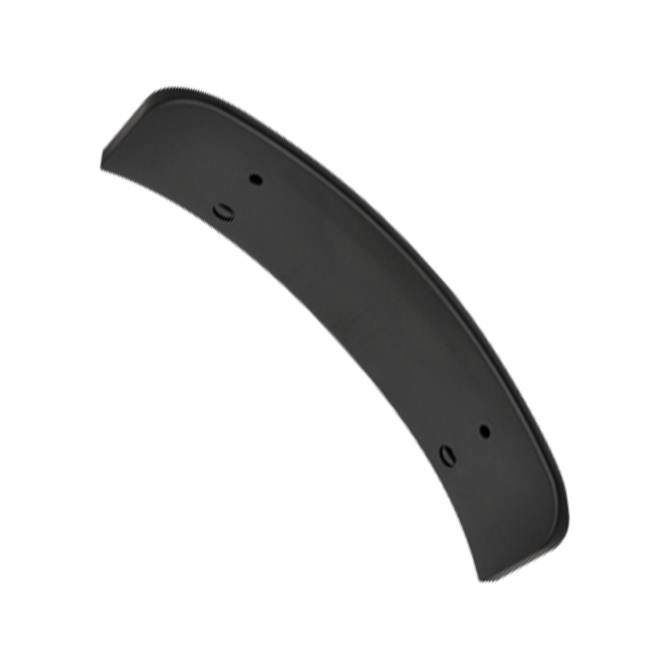

Bead breaker protection
Bead breaker blade plastic protection.
Lever protection
Plastic lever protection.

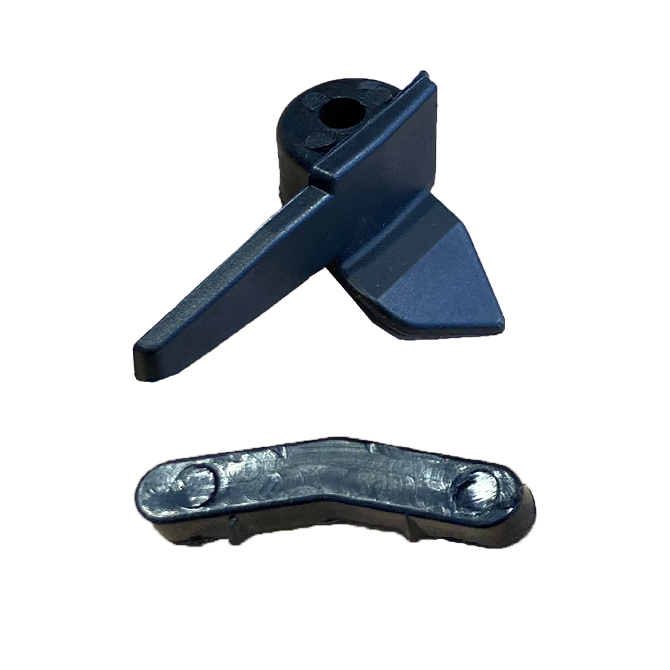

Mounting head protections
5x plastic mounting head protections.

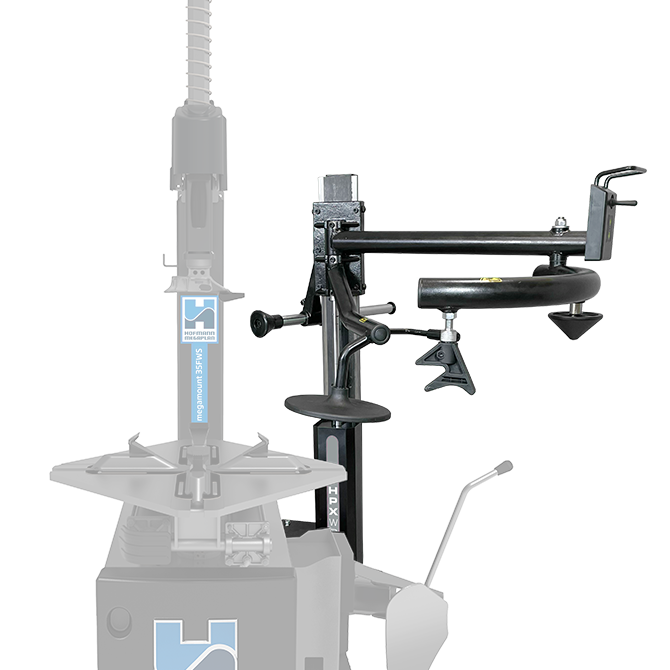

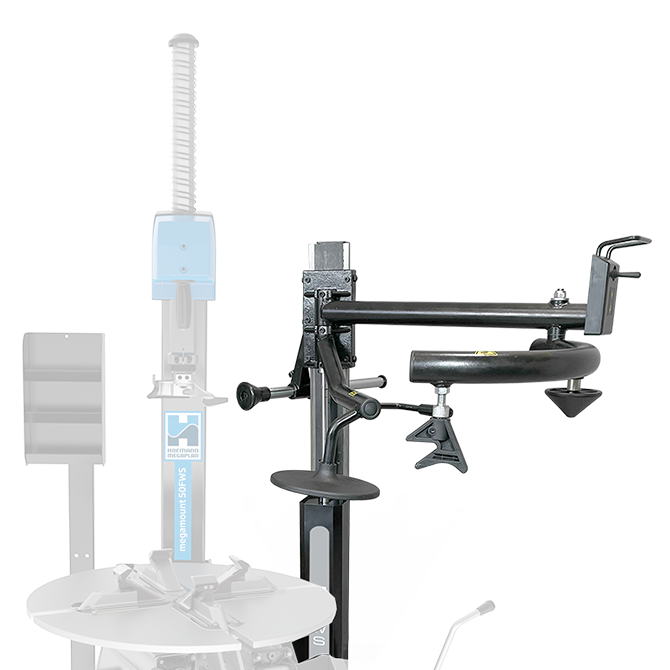

HPX-WS
Lateral presser equipped with rim pressing cone, bead pressing arm, rotating bead pressing arm and bead lifting disc.
Rim protector
Plastic rim protector.
Clamp
Mounting clamp RFT/UHP.
Inflating gun
Inflating gun.
Tool-holder
Lateral tool-holder.
Roller board
Roller board to ease the bead breaking operations.
Chromed curved lever
WDK chromed curved lever for run-flat tires.
Nickelled curved lever
WDK nickelled curved lever for run-flat tires.

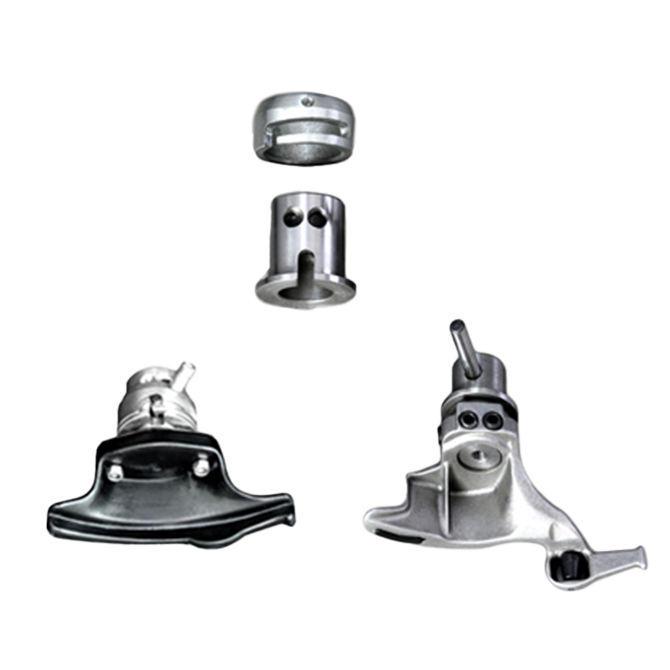

Quick mounting head
Quick interchangeable mounting head system, composed by adaptors and 2 mounting heads (one in plastic and one for raised spokes).

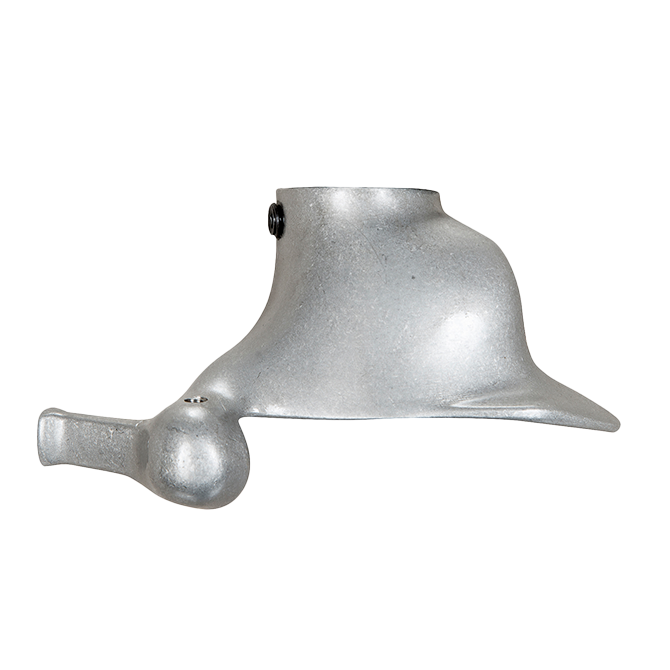

Scooter head
Mounting head for scooter wheels with 8” rims.

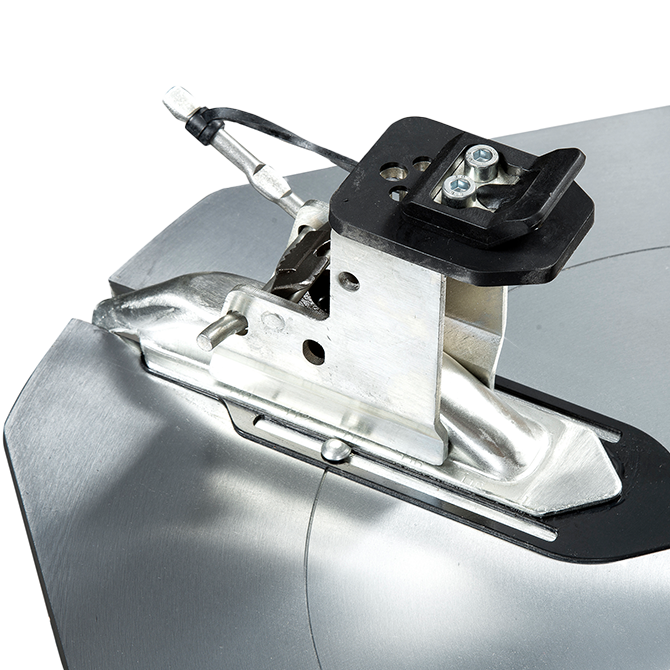

Motorcycle jaws
Set of 4 jaws for bike wheels with 6”-23” rim.

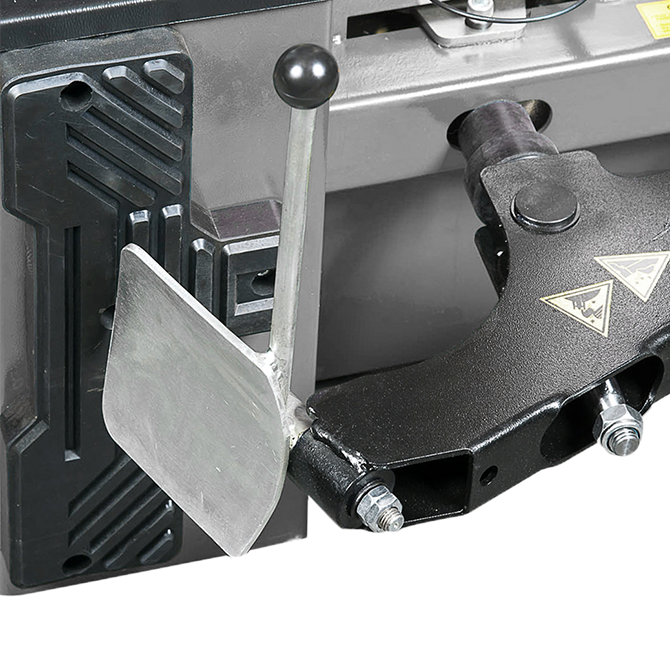

Moto bead breaker
Bead breaker blade for motorcycle wheels.

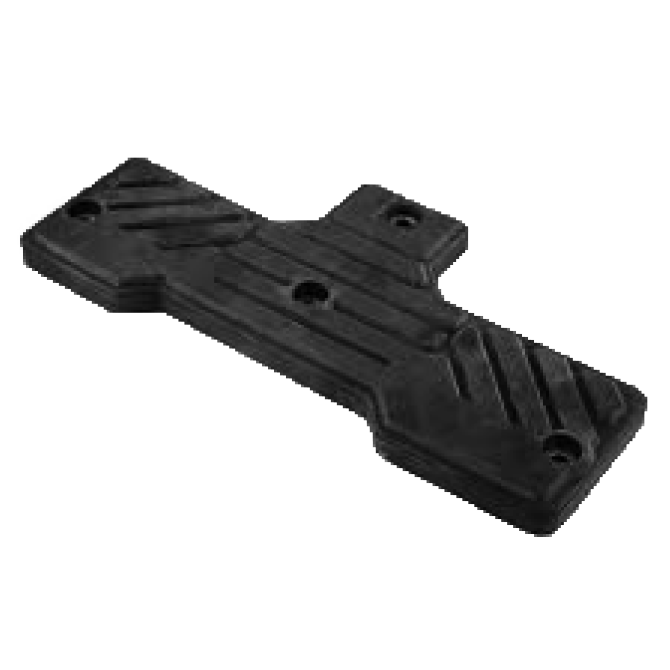

Spacer for bead breaker
Additional spacer for bead breaker support.
