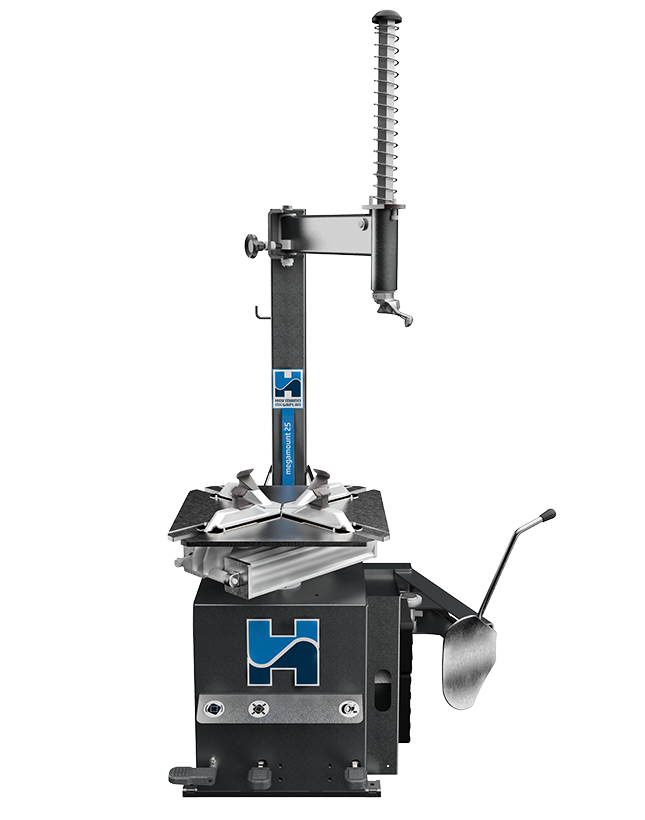

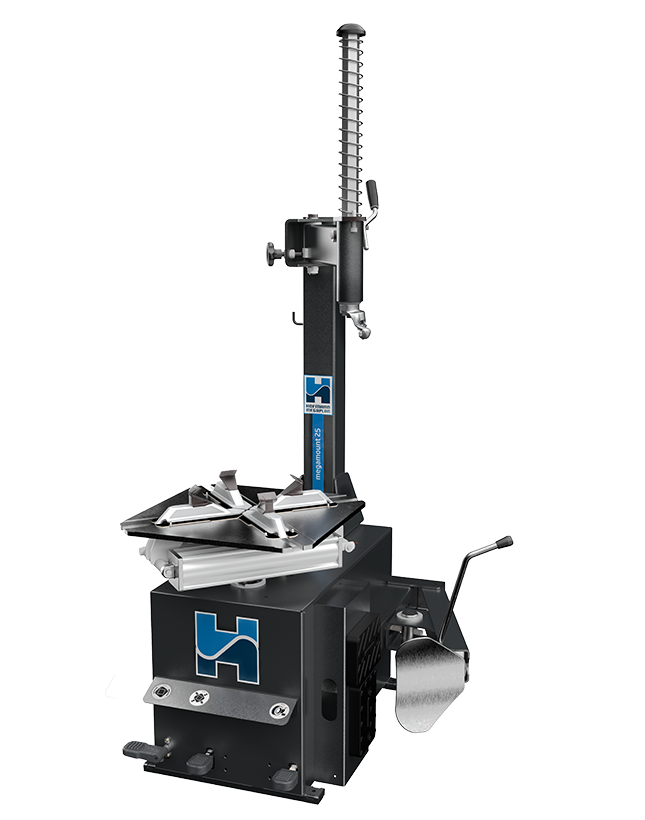

megamount 25
Semi-automatic Tyre Changer with Swing Arm with Locking Capacity up to 25"
MM25 is the semi-automatic tyre changer designed for practicality and ease of use, making it ideal for workshops with limited space. It features a swing arm for efficient operation and a sturdy, self-centring turntable with a locking capacity from 10” to 25”, ensuring secure clamping with toothed jaws. The bead breaker system supports wheels up to 13” in width and uses a double-acting cylinder for increased pressure. The machine operates with a single-speed motor, controlled via a conveniently positioned pedal for user comfort. Designed with reliability in mind, it also includes a CE-certified inflation pressure limiter and is prepared for connection to an inflating gun.
The sturdy square-shaped self-centring turntable has a clamping capacity from 10” to 25” and is characterized by the opposing jaw clamping system with 80 mm diameter cylinders that adapt to all types of rims. The toothed jaws ensure effective clamping also from inside the wheel.
Ergonomic bead breaker system which enables to operate on large wheels up to 13” width. The actuation through a double-acting cylinder amplifies its pressure capacity.
Single speed 400V/3/50-60 Hz motor controlled by a pedal. The lateral position of the pedal allows the operator to work comfortably on the side of the machine, especially convenient when using a tire changer equipped with a swing arm.

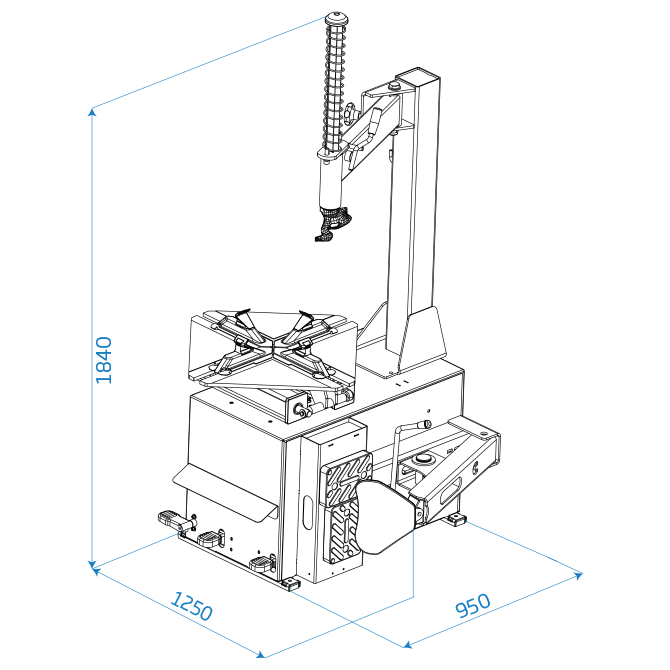

Technical data
| Clamping capacity | 10” ÷ 25” (min ÷ max) |
| Internal clamping | 12” - 25” |
| External clamping | 10” - 22” |
| Max wheel diameter | 1030 mm (40.5”) |
| Max wheel width | 330 mm (13”) |
| Bead breaker force | 12750 N |
| 3-Phase | 0.55 kW 400V - 50/60 Hz |
| Turntable speed | 7 rpm (3ph - 1 speed) |
| Operating pressure | 10 bar (145 psi) |
| Noise level | < 70 ± 3 dB (A) |
| Net weigth | 180 kg |
Accessories
Bead lever
Bead lever.
Front head protections
Front head protections (x2).
Rear head protections
Rear head protections (x2).

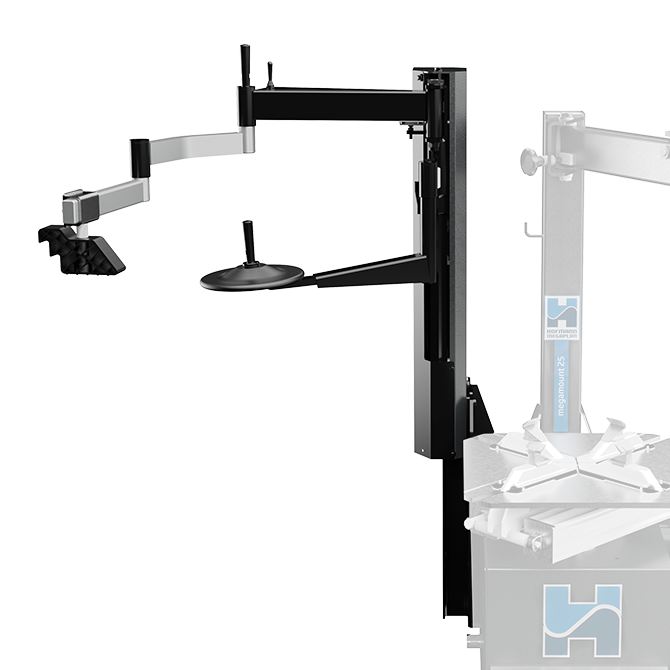

HPX-S
Lateral presser for swing tyre changers, useful to operate on particularly hard and large-sized Run-Flat and UHP Tyres.
Wheel lift
Wheel lift with working capacity up to 75 kg.
Roller board
Roller board to ease the bead breaking operations.
Bead-pusher
Bead-presser with pulling system.

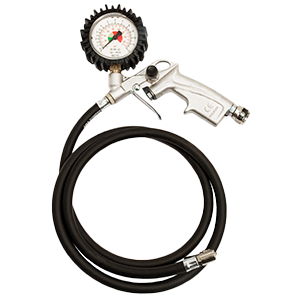

Inflating gun
Inflating gun.
External inflating kit
External inflating kit for tubeless tires including air tank to be fixed on the machine.
Lever protection
Plastic lever protection.
Slide guard kit
4 jaws ALU protection kit.
Jaws for motorcycle
Jaws for motorcycle wheels 14” ÷ 24”.
Jaws for scooter
Jaws for scooter wheels 8″-14″.

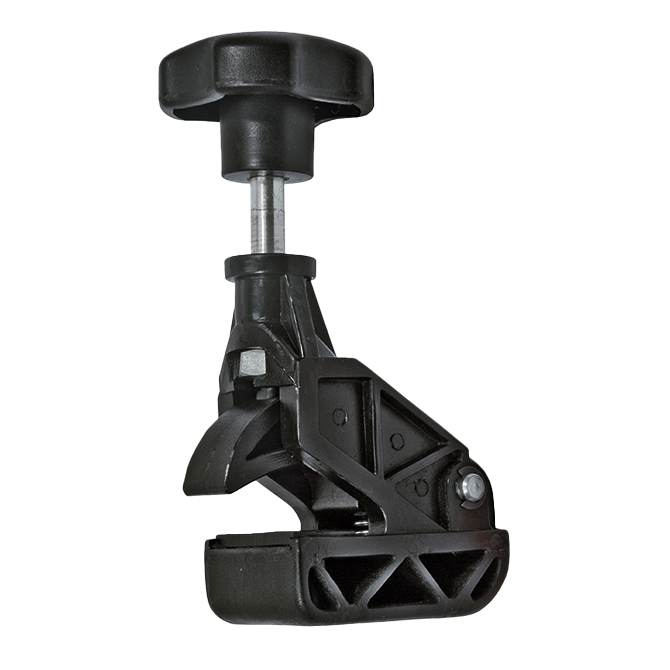

Clamp
Mounting clamp RFT/UHP.
Rim protector
Plastic rim protector.
Blade protection
Bead breaker blade plastic protection.
Chromed curved lever
WDK chromed curved lever for run-flat tires.
Nickelled curved lever
WDK nickelled curved lever for run-flat tires.
Tyreshop 4.0 kit
Kit composed by PLC with 4,3″ touch screen and Tyreshop 4.0 software. Connection via LAN or Wi-Fi.
