megaline 3500

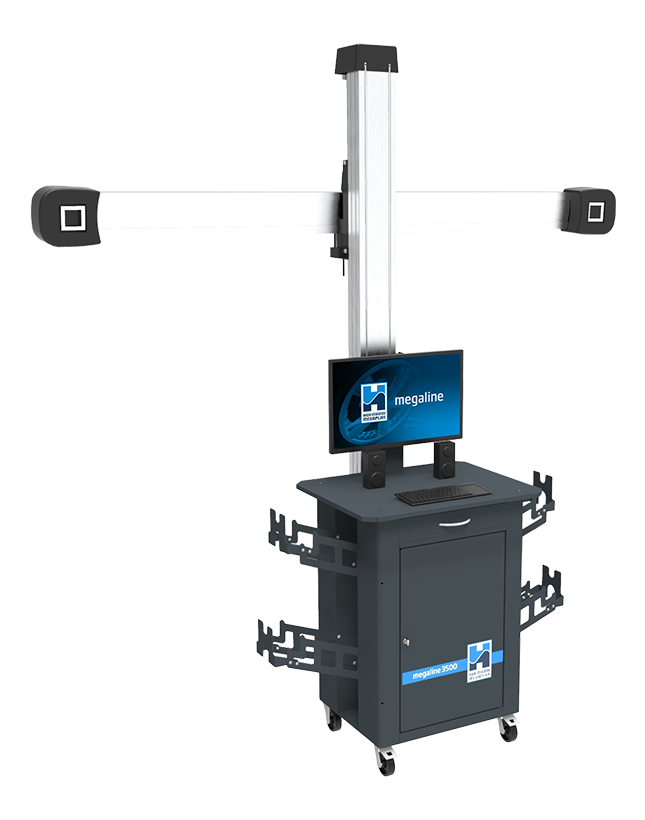

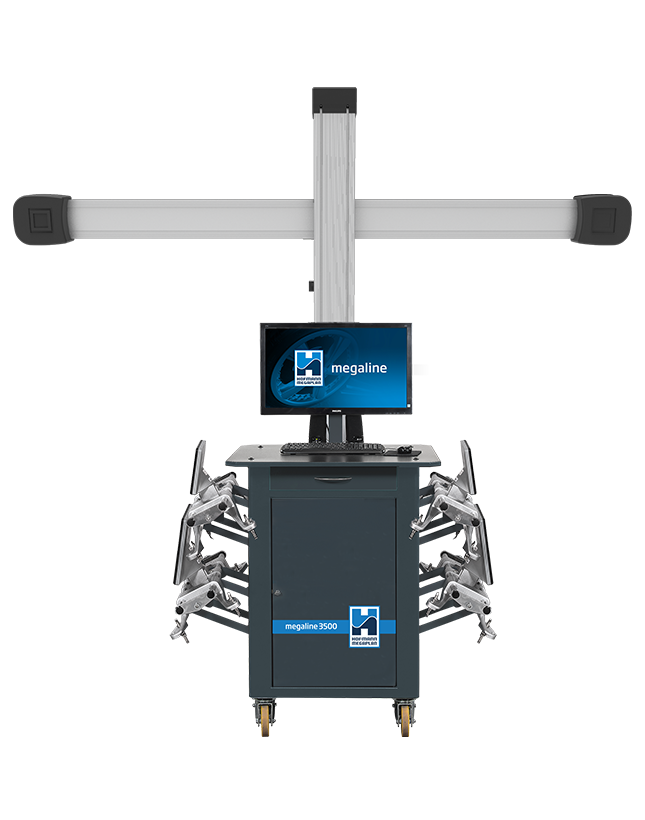

3D Wheel Alignment System with Automatic Camera Movement

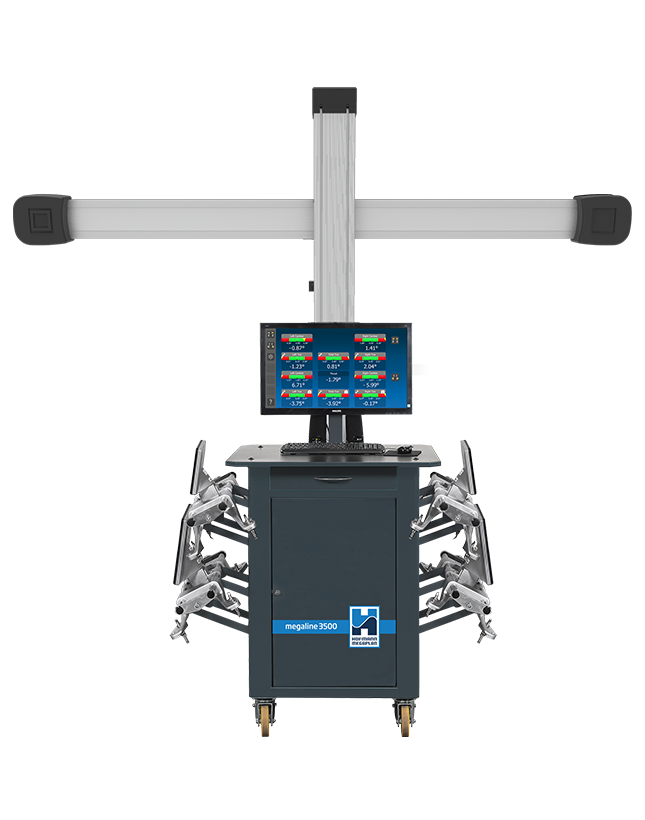

The diagnosis page shows the measurements made on the vehicle alongside the specifications provided by the database, highlighting in red the measurements that are outside the specification limits and which will need to be adjusted. The Audit function provides a diagnosis of possible driving disorders resulting from measurements outside specification limits.

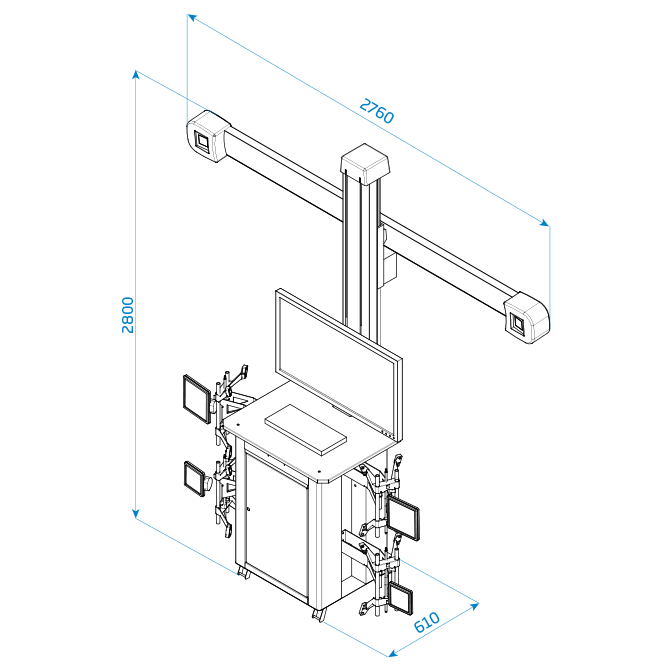

Technical data

Power supply230 VAC - 1-phase - 50/60 Hz
115 VAC - 1-phase
Max power absorbed0,7 kW
Max current absorbed3 A - 230 V
6 A - 115 V
